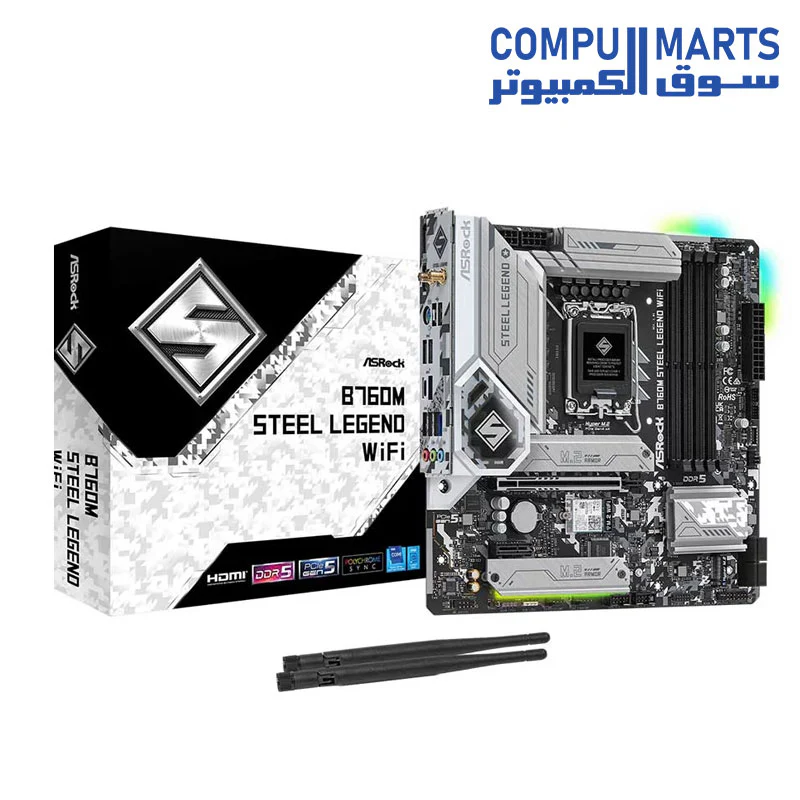

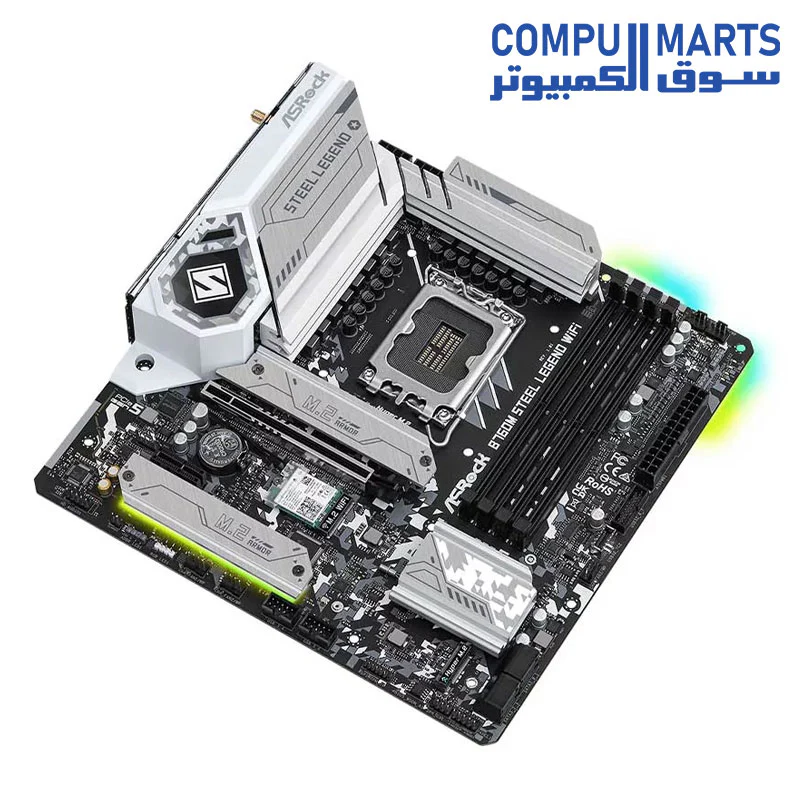

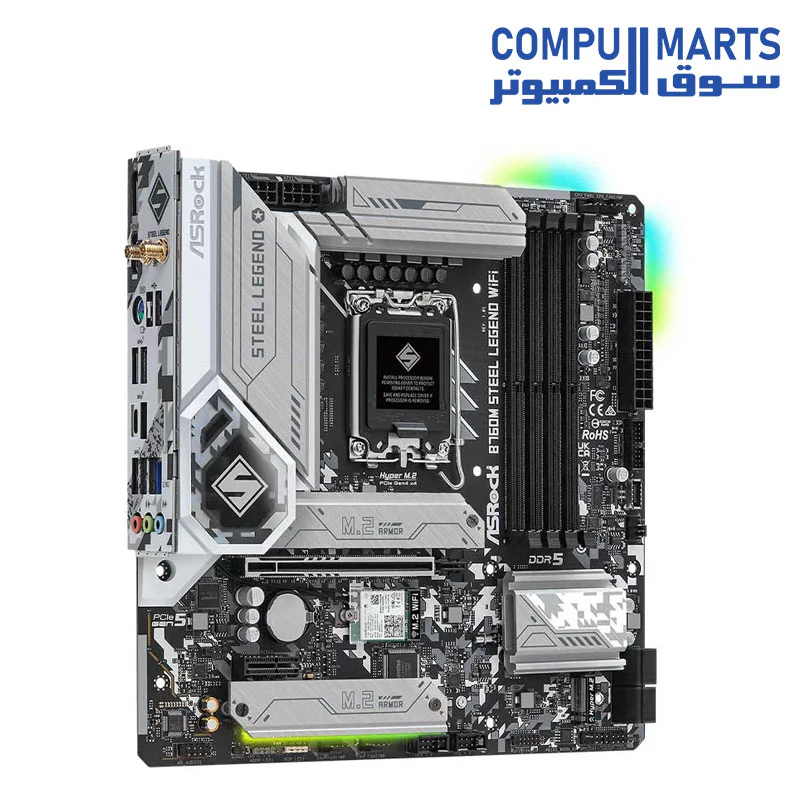

Asrock B760M Steel Legend Wifi DDR5 Motherboard
| Category | Specification Details |
|---|---|
| CPU Support | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); Supports Intel® Hybrid Technology & Turbo Boost Max 3.0 |
| Chipset | Intel® B760 |
| Memory | 4 x DDR5 DIMM Slots; Supports dual channel up to 7200+(OC); Max Capacity 256GB; Supports Intel® XMP 3.0 |
| Power Phase | 12+1+1 Power Phase, 50A Dr.MOS for VCore+GT; Nichicon 12K Black Caps |
| Graphics Output | 1 x HDMI 2.1 TMDS (4K 60Hz); 1 x DisplayPort 1.4 with DSC (8K 60Hz); 1 x eDP 1.4 |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot; 1 x PCIe 4.0 x1 Slot; 1 x M.2 Socket (Key E) for WiFi/BT |
| Storage | 3 x Hyper M.2 Sockets (PCIe Gen4x4); 4 x SATA3 6.0 Gb/s Connectors; Supports RAID 0, 1, 5, 10 for SATA |
| Wireless & LAN | 802.11ax Wi-Fi 6E (Dual-Band 2x2); Bluetooth 5.3; Dragon 2.5G LAN (10/100/1000/2500 Mb/s) |

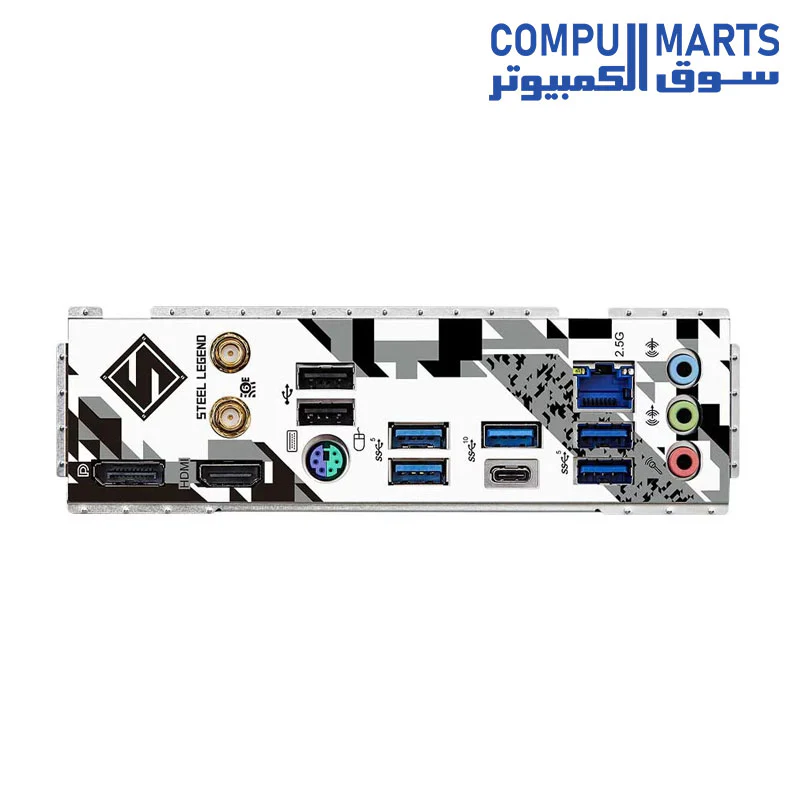

| USB (Rear) | 1 x USB 3.2 Gen2 Type-C; 1 x USB 3.2 Gen2 Type-A; 4 x USB 3.2 Gen1; 2 x USB 2.0 |
| USB (Internal) | 1 x Front Panel Type C USB 3.2 Gen2; 1 x USB 3.2 Gen1 Header (2 ports); 2 x USB 2.0 Headers (4 ports) |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Nahimic Audio |
| Form Factor | Micro ATX: 9.6-in x 9.6-in (24.4 cm x 24.4 cm); 2oz Copper PCB |
| Unique Features | ASRock Auto Driver Installer; Post Status Checker; Polychrome SYNC; Flexible Integrated I/O Shield |
$200.40
Asrock B760M Steel Legend Wifi DDR5 Motherboard—
$200.40
Description
| Category | Specification Details |
|---|---|
| CPU Support | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); Supports Intel® Hybrid Technology & Turbo Boost Max 3.0 |
| Chipset | Intel® B760 |
| Memory | 4 x DDR5 DIMM Slots; Supports dual channel up to 7200+(OC); Max Capacity 256GB; Supports Intel® XMP 3.0 |
| Power Phase | 12+1+1 Power Phase, 50A Dr.MOS for VCore+GT; Nichicon 12K Black Caps |
| Graphics Output | 1 x HDMI 2.1 TMDS (4K 60Hz); 1 x DisplayPort 1.4 with DSC (8K 60Hz); 1 x eDP 1.4 |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot; 1 x PCIe 4.0 x1 Slot; 1 x M.2 Socket (Key E) for WiFi/BT |
| Storage | 3 x Hyper M.2 Sockets (PCIe Gen4x4); 4 x SATA3 6.0 Gb/s Connectors; Supports RAID 0, 1, 5, 10 for SATA |
| Wireless & LAN | 802.11ax Wi-Fi 6E (Dual-Band 2x2); Bluetooth 5.3; Dragon 2.5G LAN (10/100/1000/2500 Mb/s) |
| USB (Rear) | 1 x USB 3.2 Gen2 Type-C; 1 x USB 3.2 Gen2 Type-A; 4 x USB 3.2 Gen1; 2 x USB 2.0 |
| USB (Internal) | 1 x Front Panel Type C USB 3.2 Gen2; 1 x USB 3.2 Gen1 Header (2 ports); 2 x USB 2.0 Headers (4 ports) |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Nahimic Audio |
| Form Factor | Micro ATX: 9.6-in x 9.6-in (24.4 cm x 24.4 cm); 2oz Copper PCB |
| Unique Features | ASRock Auto Driver Installer; Post Status Checker; Polychrome SYNC; Flexible Integrated I/O Shield |
