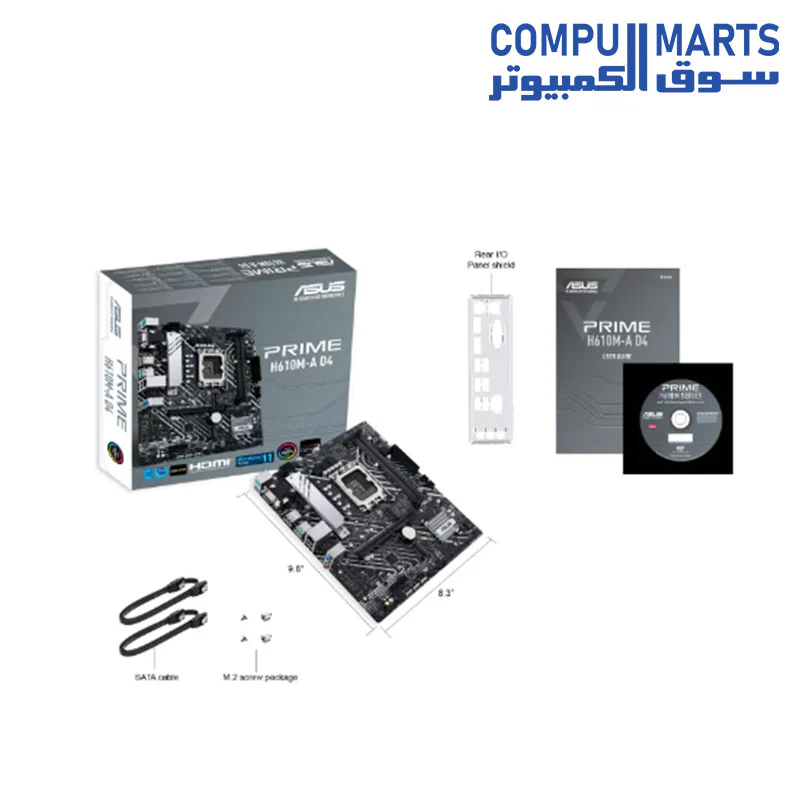

ASUS Prime H610M-A D4-CSM LGA 1700(Intel 12th Gen) Micro-ATX Commercial Motherboard (PCIe 4.0, DDR4, 2xM.2 Slots,1Gb LAN, Rear USB 3.2 Gen 2 Ports, DP/HDMI/D-Sub, SPI-TPM Header, ACCE)
ASUS Prime H610M-A D4-CSM LGA 1700(Intel 12th Gen) Micro-ATX Commercial Motherboard (PCIe 4.0, DDR4, 2xM.2 Slots,1Gb LAN, Rear USB 3.2 Gen 2 Ports, DP/HDMI/D-Sub, SPI-TPM Header, ACCE)
| Category | Specification Details |
|---|---|
| CPU Support | Intel® Socket LGA1700 (Supports 14th, 13th & 12th Gen Processors) |
| Chipset | Intel® H610 Chipset |
| Memory | 2 x DIMM, Max. 64GB, DDR4 (Up to 3200 MHz), XMP Support |

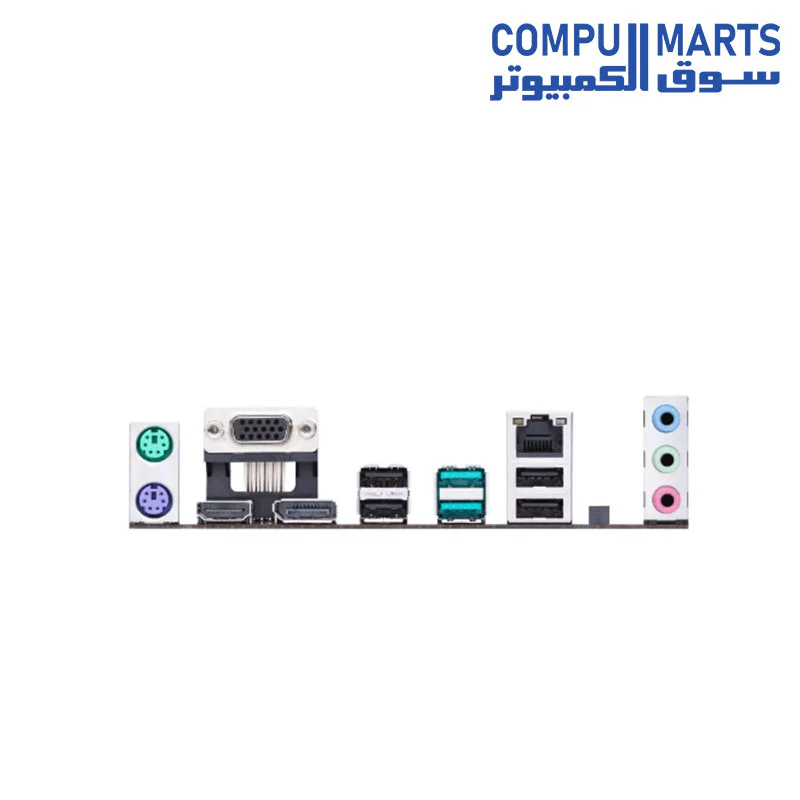

| Graphics Ports | 1 x DisplayPort 1.4, 1 x HDMI 2.1 (4K@60Hz), 1 x D-Sub (VGA) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (H610) |
| Storage | 2 x M.2 slots (PCIe 3.0) + 4 x SATA 6Gb/s |
| Networking | 1 x Intel® 1Gb Ethernet | V-M.2 Slot (Key E) for Wi-Fi module |
| USB (Rear) | 2 x USB 3.2 Gen 2 (Type-A), 4 x USB 2.0 |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC |
| RGB Lighting | 3 x Addressable Gen 2 headers, 2 x Aura RGB headers |
| Form Factor | mATX (24.4 cm x 21.1 cm) |
| Special Features | ASUS Control Center Express (CSM), 5X Protection III, Aura Sync |
$82.07
ASUS Prime H610M-A D4-CSM LGA 1700(Intel 12th Gen) Micro-ATX Commercial Motherboard (PCIe 4.0, DDR4, 2xM.2 Slots,1Gb LAN, Rear USB 3.2 Gen 2 Ports, DP/HDMI/D-Sub, SPI-TPM Header, ACCE)—
$82.07
Description
| Category | Specification Details |
|---|---|
| CPU Support | Intel® Socket LGA1700 (Supports 14th, 13th & 12th Gen Processors) |
| Chipset | Intel® H610 Chipset |
| Memory | 2 x DIMM, Max. 64GB, DDR4 (Up to 3200 MHz), XMP Support |
| Graphics Ports | 1 x DisplayPort 1.4, 1 x HDMI 2.1 (4K@60Hz), 1 x D-Sub (VGA) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (H610) |
| Storage | 2 x M.2 slots (PCIe 3.0) + 4 x SATA 6Gb/s |
| Networking | 1 x Intel® 1Gb Ethernet | V-M.2 Slot (Key E) for Wi-Fi module |
| USB (Rear) | 2 x USB 3.2 Gen 2 (Type-A), 4 x USB 2.0 |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC |
| RGB Lighting | 3 x Addressable Gen 2 headers, 2 x Aura RGB headers |
| Form Factor | mATX (24.4 cm x 21.1 cm) |
| Special Features | ASUS Control Center Express (CSM), 5X Protection III, Aura Sync |
