ASUS ROG Strix 850G - 850W Gold PSU, Power Supply (ROG heatsinks, Axial-tech Fan Design, Dual Ball Fan Bearings, 0dB Technology, 80 Plus Gold Certification, Fully Modular Cables

ASUS ROG Strix 850G - 850W Gold PSU, Power Supply (ROG heatsinks, Axial-tech Fan Design, Dual Ball Fan Bearings, 0dB Technology, 80 Plus Gold Certification, Fully Modular Cables

Frozen Silence

The ROG Strix Series PSUs bring high-end cooling and premium components together for an ultra-quiet high-performance product aimed at core gamers. Massive ROG heatsinks trickle down from the mighty ROG Thor series and Axial-tech fan design from our premium NVIDIA RTX graphics cards also make an appearance. Below the surface, low RDS (on) MOSFETs and premium Japanese capacitors take on power delivery with ease. The result is an incredibly quiet and efficient power supply with the reserves to handle the most intense gaming scenarios.

Let it sink in

The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside ROG Strix Series PSUs. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise stays whisper quiet, even under full load.

80 Plus Gold Certification

Heart of gold

Top-end Japanese capacitors ensure efficient operation and have helped the Strix earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.

Dimensions : 16 x 15 x 8.6 Centimeter

Efficiency : 80Plus Gold

Protection Features : OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials : ROHS

AC Input Range : 100-240Vac

RGB Connector : NO

Thermal Features : ROG Thermal Solution

Fan Size : 135 mm

DC Output Voltage : +3.3V +5V +12V -12V +5Vsb

Maximum Load : 20A 20A 70A 0.3A 3A

Combined Load : 100W 100W 840W 3.6W 15W

Total Output : 850W

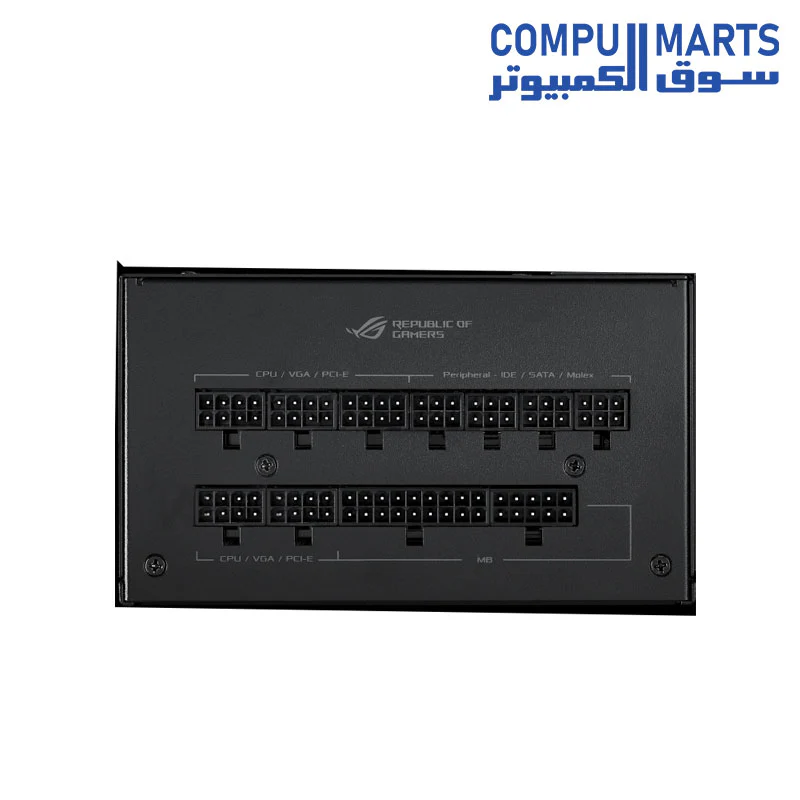

Connectors : MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 6+2-pin x 6 SATA x 8 PERIPHERAL x 6

Package Contents : Power Cord x 1 Motherboard Power Cable x 1 (610mm)

CPU Cable 1000mm x 2 (1000mm) PCI-E Cable x 3 (675mm)

SATA Cable x 2 (810mm/860mm)

Peripheral x 2 (450mm) Join the ROG badge x 2 ROG logo magnet x 1 ROG label x 3 *MB/ CPU/ PCI-E cables come with embedded capacitors in the middle.

Weight : Single Card (KG) 1.825 Product Weight (with packing) (KG) 3.48
