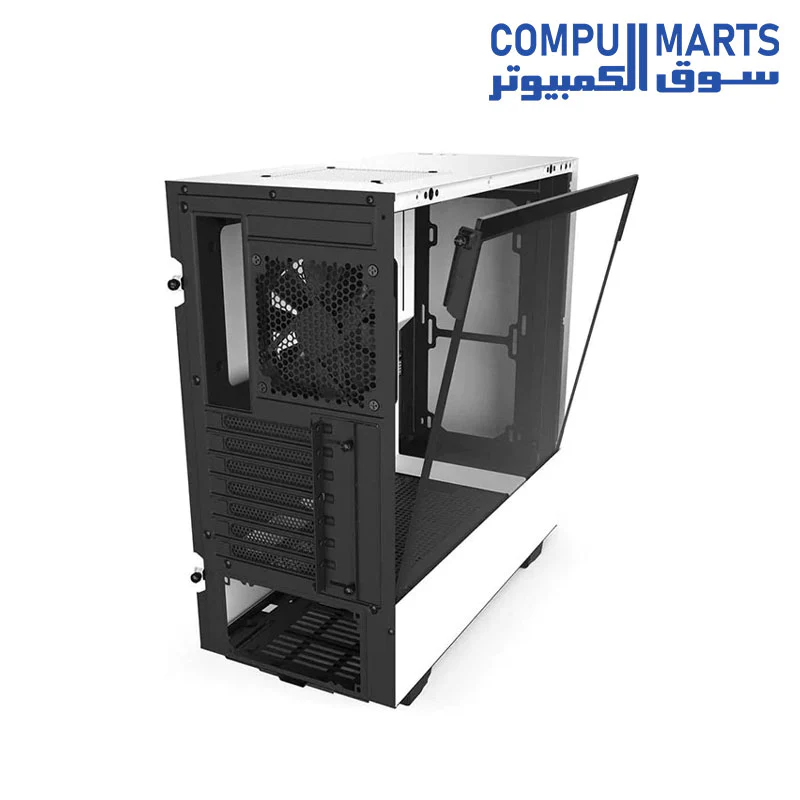

NZXT H510 - Compact ATX Mid-Tower PC Gaming Case
| Category | Specification Details |
|---|---|
| Product Name | NZXT H510 - Compact ATX Mid-Tower PC Gaming Case |

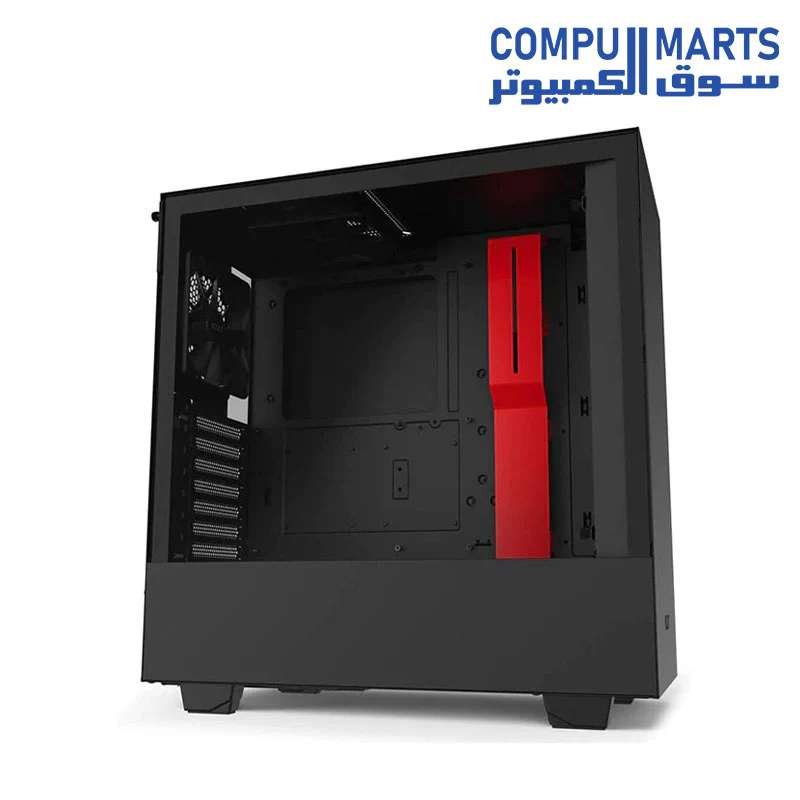

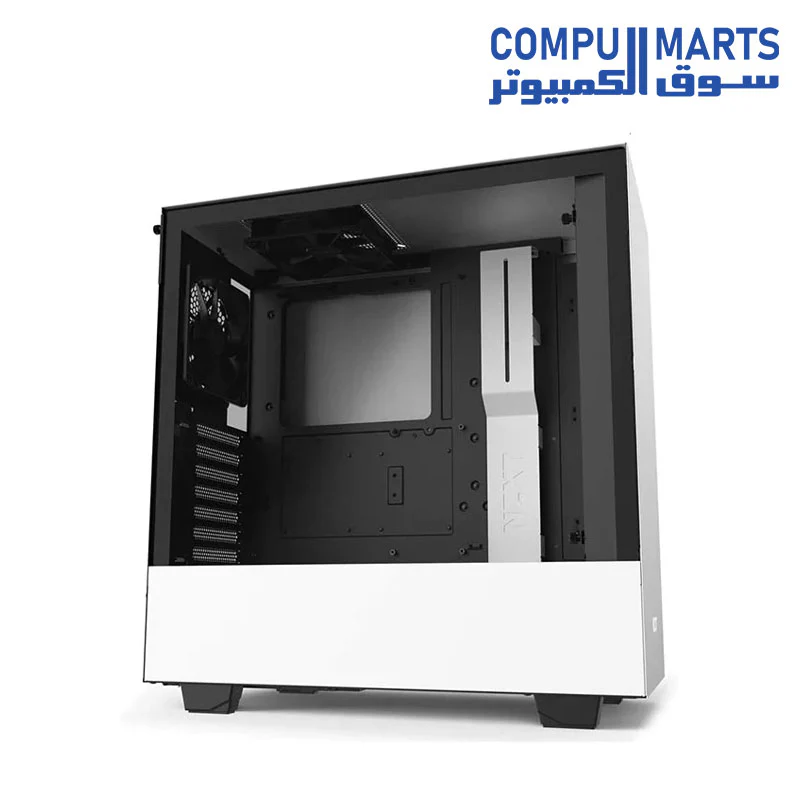

| Design Features | Iconic cable management bar and uninterrupted tempered-glass side panel |

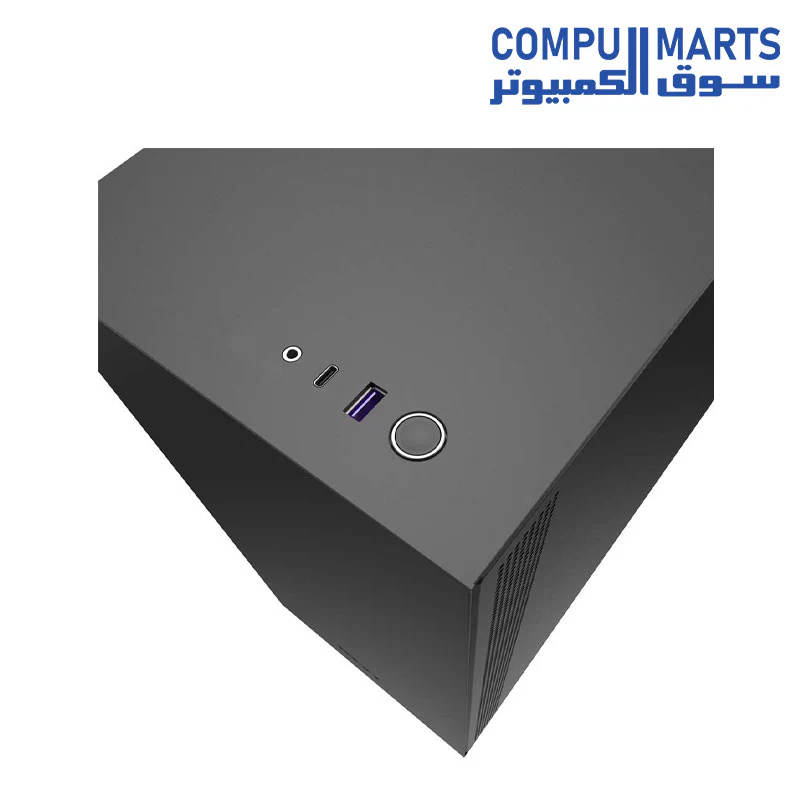

| Front Connectivity | USB 3.2 Gen2-compatible USB-C connector on the front panel |
| Cable Management | Cable routing kit with pre-installed channels and straps |
| Included Cooling | Two Aer F120mm fans and removable filter on PSU intake |

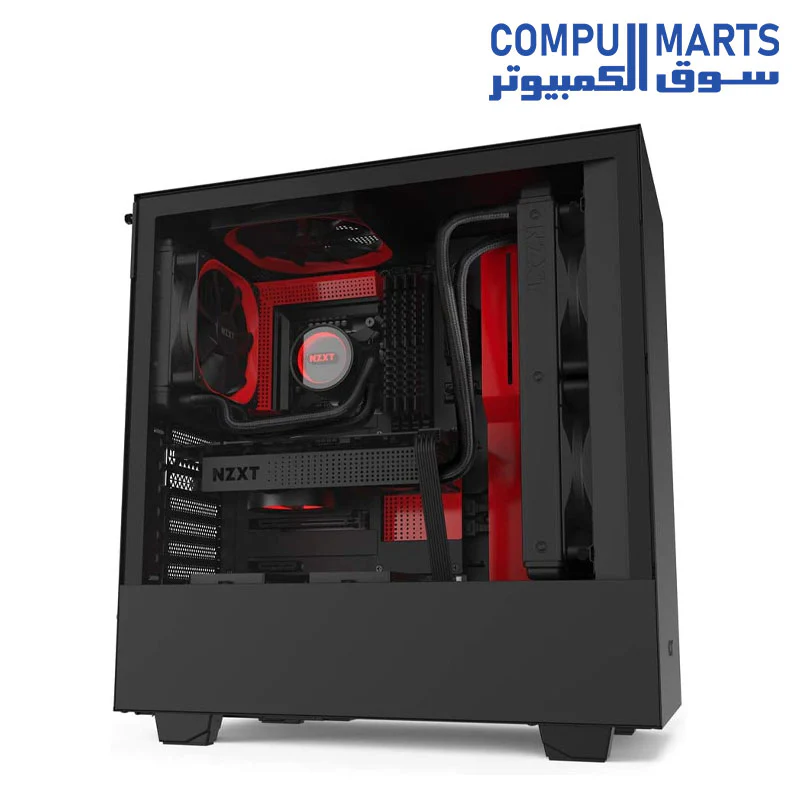

| Radiator Bracket | Removable bracket designed for radiators up to 280mm |
| Inside the Box | H510 Case, Aer F 120mm (Case Version), Headset Audio Jack Splitter, Breakout Cable, Installation Accessories |
| Motherboard Support | Mini-ITX, MicroATX, ATX |
| Enclosure Type | Compact Mid-Tower |
| Case Material | SGCC Steel, Clear Tempered Glass |
| Height | 460mm / 18.11 inches |
| Width | 210mm / 8.27 inches |
| Depth | 428mm / 16.85 inches |
| Weight | 6.6 kg / 14.55 lb |
| Max CPU Cooler Clearance | 165mm |
| Max GPU Clearance | 381mm |
| Front Fan & Radiator Clearance | 60mm |
| Cable Management Clearance | 19 - 23mm |
| USB 3.2 Gen 1 Type-A | 1 |
| USB 3.2 Gen 2 Type-C | 1 |
| Headset Audio Jack | 1 |

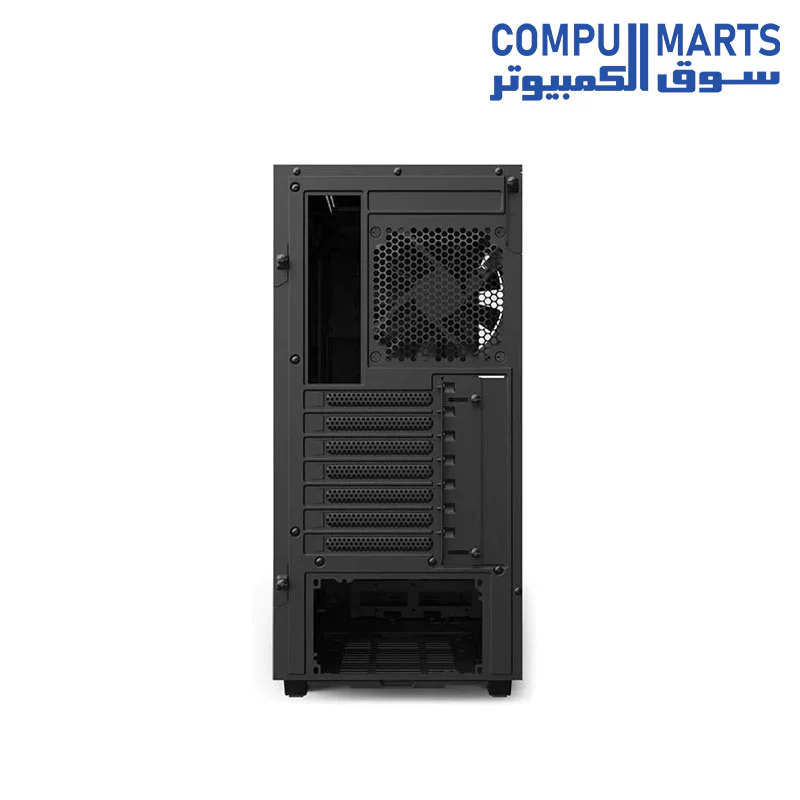

| Expansion Slots Standard | 7 |
| Expansion Slots Vertical | N/A |
| Drive Bays 2.5" | 2 + 1 |
| Drive Bays 3.5" | 2 + 1 |
| Fan Support Front | 2 x 120mm / 2 x 140mm |
| Fan Support Top | 1 x 120mm / 1 x 140mm |
| Fan Support Rear | 1 x 120mm |
| Filters | All air intakes |
| Radiator Support Front | 280mm |
| Radiator Support Top | N/A |
| Radiator Support Rear | 120mm |
| Fan Model | Aer P 120mm (Case Version) |
| Fan Speed | 1,200 ± 200RPM |
| Fan Airflow | 50.42 CFM |
| Fan Noise | 28 dBA |
| Fan Connector | 3-pin |
| Warranty | 2 years |
| Model Number | CA-H510B-W1 |
| UPC | 815671014764 |
| EAN | 5060301695065 |
Select Color
From $8.59
Original: $28.63
-70%NZXT H510 - Compact ATX Mid-Tower PC Gaming Case—
$28.63
$8.59
Description
| Category | Specification Details |
|---|---|
| Product Name | NZXT H510 - Compact ATX Mid-Tower PC Gaming Case |
| Design Features | Iconic cable management bar and uninterrupted tempered-glass side panel |
| Front Connectivity | USB 3.2 Gen2-compatible USB-C connector on the front panel |
| Cable Management | Cable routing kit with pre-installed channels and straps |
| Included Cooling | Two Aer F120mm fans and removable filter on PSU intake |
| Radiator Bracket | Removable bracket designed for radiators up to 280mm |
| Inside the Box | H510 Case, Aer F 120mm (Case Version), Headset Audio Jack Splitter, Breakout Cable, Installation Accessories |
| Motherboard Support | Mini-ITX, MicroATX, ATX |
| Enclosure Type | Compact Mid-Tower |
| Case Material | SGCC Steel, Clear Tempered Glass |
| Height | 460mm / 18.11 inches |
| Width | 210mm / 8.27 inches |
| Depth | 428mm / 16.85 inches |
| Weight | 6.6 kg / 14.55 lb |
| Max CPU Cooler Clearance | 165mm |
| Max GPU Clearance | 381mm |
| Front Fan & Radiator Clearance | 60mm |
| Cable Management Clearance | 19 - 23mm |
| USB 3.2 Gen 1 Type-A | 1 |
| USB 3.2 Gen 2 Type-C | 1 |
| Headset Audio Jack | 1 |
| Expansion Slots Standard | 7 |
| Expansion Slots Vertical | N/A |
| Drive Bays 2.5" | 2 + 1 |
| Drive Bays 3.5" | 2 + 1 |
| Fan Support Front | 2 x 120mm / 2 x 140mm |
| Fan Support Top | 1 x 120mm / 1 x 140mm |
| Fan Support Rear | 1 x 120mm |
| Filters | All air intakes |
| Radiator Support Front | 280mm |
| Radiator Support Top | N/A |
| Radiator Support Rear | 120mm |
| Fan Model | Aer P 120mm (Case Version) |
| Fan Speed | 1,200 ± 200RPM |
| Fan Airflow | 50.42 CFM |
| Fan Noise | 28 dBA |
| Fan Connector | 3-pin |
| Warranty | 2 years |
| Model Number | CA-H510B-W1 |
| UPC | 815671014764 |
| EAN | 5060301695065 |
