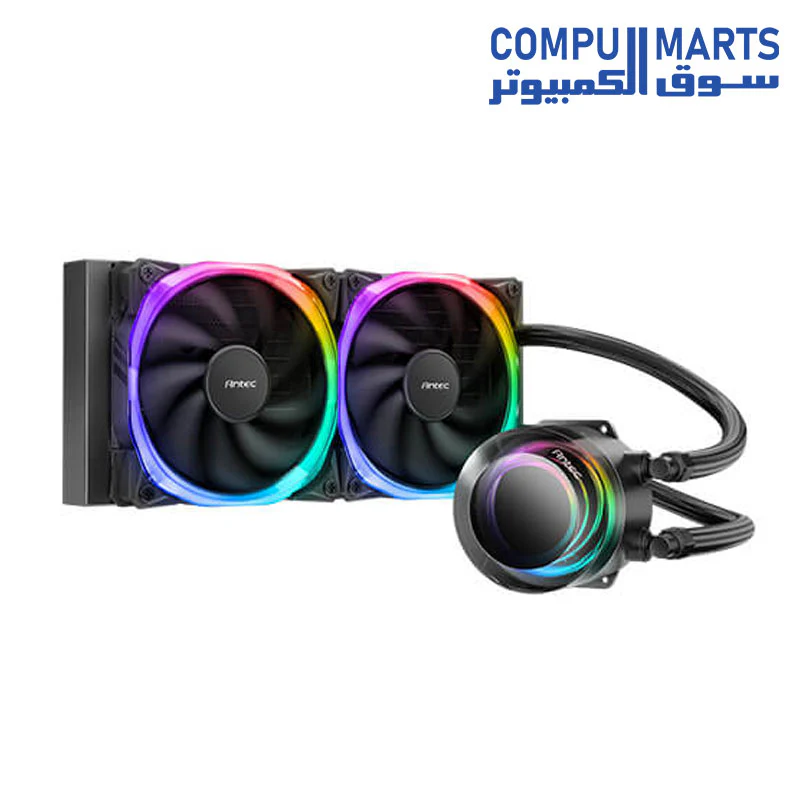

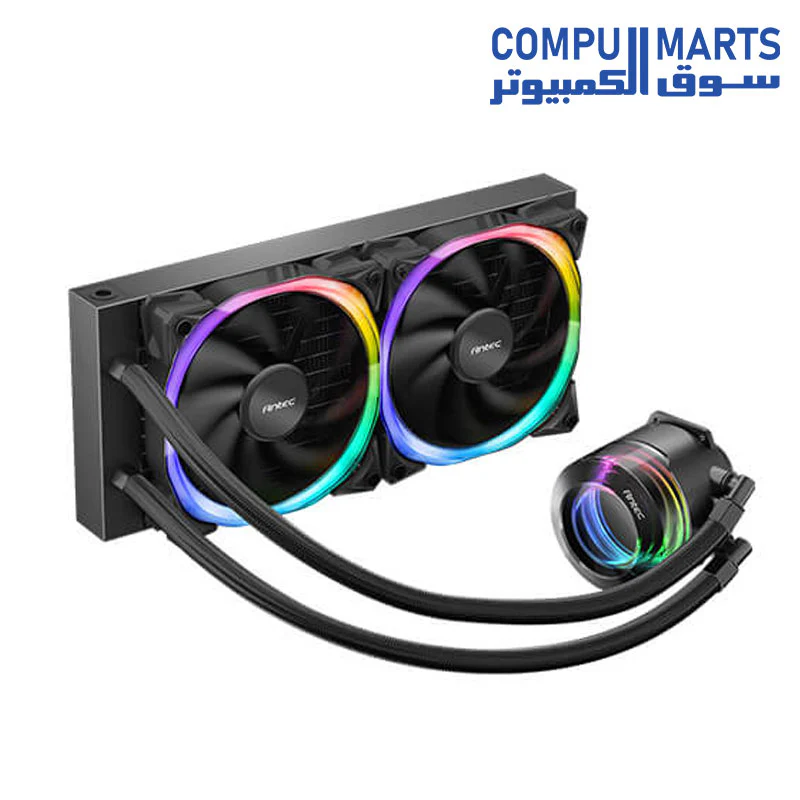

Cooling-Liquid-Antec-Vortex 240MM-ARGB
Cooling-Liquid-Antec-Vortex 240MM-ARGB
Radiator
|
Radiator Dimensions
|
277 x 120 x 27 mm
|
Radiator Material
|
Aluminum
|
|
Tdp Number
|
|
|
Pump
|
Dimensions
|
￠67 x 48.5 mm
|
Rating Voltage
|
DC 12 V
|
Minimum Startup Voltage
|
≥ 5.0 V
|
Fan Speed
|
2800±10% RPM
|
Rated Current
|
0.25±20% A
|
Consumed Power
|
3.0 W
|
Flow rate
|
≥ 1300 mL / min
|
Water Pressure
|
1.4M
|
Operation Temperature
|
-10°C ~ +60°C
|
Noise Level
|
≤ 28 dB(A)
|
Lifespan
|
40,000 hours
|
Connector
|
PUMP: 3-pin | LED: 3-pin
|
|
Fan
|
Model Name
|
Fusion 120 ARGB fan (AH12012FM1)
|
Fan Type
|
PWM Fan
|
Dimensions
|
120 x 120 x 25 mm
|
Bearing Type
|
Hydraulic Bearing
|
LED Type
|
Addressable RGB
|
Fan Speed
|
600±200 ~ 2000±10% RPM
|
Airflow
|
57.93 CFM (max.)
|
Air Pressure
|
2.11 mmH₂O (max.)
|
Fan Noise Level
|
31.24 dB(A)
|
Lifespan
|
40,000 hours
|
Connector
|
FAN: 4-pin PWM | LED: 3-pin
|
Rated Voltage
|
FAN: DC 12 V | LED: DC 5 V
|
Operation Voltage
|
FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V
|
Rated Current
|
FAN : ≤ 0.21 A | LED : ≤ 0.58 A
|
|
Socket Compatibility CPU
|
Intel : LGA 115X / 1200 / 1700 / 20XX
AMD : AM3/AM4/AM5
|
Warranty
|
3 years
|
UPC#
|
0-761345-74046-3
|
|
$71.55
