Gigabyte B550M DS3H mATX Motherboard for AMD AM4 CPUs Ryzen
| Category | Specification Details |
|---|---|
| CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series and Ryzen™ 3000/ 3000 G-Series Processors |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM (Up to 128 GB); Supports up to DDR4 4733(O.C.); Dual channel architecture; XMP support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60 Hz); 1 x DVI-D (1920x1200@60 Hz) |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16 (CPU); 1 x PCIe 3.0 x16 (at x4 mode); 1 x PCIe 3.0 x1 |
| Storage Interface | 1 x M.2 (PCIe 4.0 x4/x2); 1 x M.2 (PCIe 3.0 x2); 4 x SATA 6Gb/s; RAID 0, 1, 10 support |
| USB | Rear: 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1; Internal: 2 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Internal I/O | 2 x Addressable LED headers; 2 x RGB LED headers; Q-Flash Plus button; TPM header |

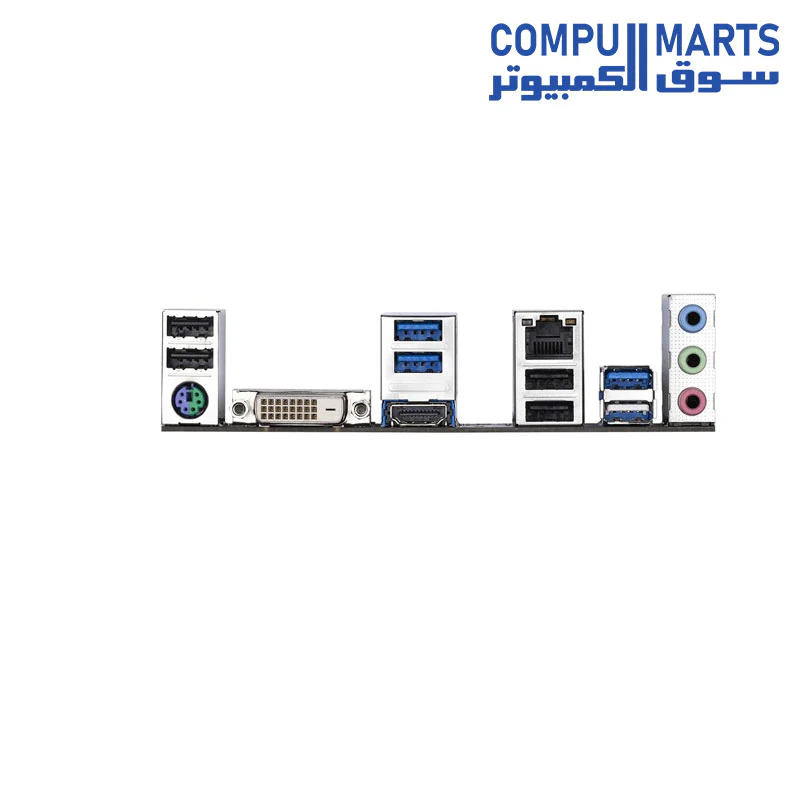

| Back Panel I/O | PS/2 Port; DVI-D; HDMI; 4x USB 3.2; 4x USB 2.0; RJ-45 LAN; 3x Audio Jacks |
| Unique Features | APP Center (@BIOS, RGB Fusion, Smart Backup); Q-Flash Plus; Xpress Install |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
$101.16
Gigabyte B550M DS3H mATX Motherboard for AMD AM4 CPUs Ryzen—
$101.16
Description
| Category | Specification Details |
|---|---|
| CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series and Ryzen™ 3000/ 3000 G-Series Processors |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM (Up to 128 GB); Supports up to DDR4 4733(O.C.); Dual channel architecture; XMP support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60 Hz); 1 x DVI-D (1920x1200@60 Hz) |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16 (CPU); 1 x PCIe 3.0 x16 (at x4 mode); 1 x PCIe 3.0 x1 |
| Storage Interface | 1 x M.2 (PCIe 4.0 x4/x2); 1 x M.2 (PCIe 3.0 x2); 4 x SATA 6Gb/s; RAID 0, 1, 10 support |
| USB | Rear: 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1; Internal: 2 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Internal I/O | 2 x Addressable LED headers; 2 x RGB LED headers; Q-Flash Plus button; TPM header |
| Back Panel I/O | PS/2 Port; DVI-D; HDMI; 4x USB 3.2; 4x USB 2.0; RJ-45 LAN; 3x Audio Jacks |
| Unique Features | APP Center (@BIOS, RGB Fusion, Smart Backup); Q-Flash Plus; Xpress Install |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
