GIGABYTE B860M DS3H DDR5 MOTHERBOARD
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Supports Intel® Core™ Ultra Processors (Refer to GIGABYTE support list) |
| Chipset | Intel® B860 Express Chipset |
| Memory | 4 × DDR5 DIMM (Up to 256GB); Supports up to 9066(O.C) MT/s; Dual Channel; Intel® XMP |
| Graphics | 1 × HDMI 2.1 (4K@60Hz); 2 × DisplayPort 2.1 (4K@144Hz); Triple Display Support |
| Expansion Slots | 1 × PCIe 5.0 x16 (CPU); 2 × PCIe 4.0 x16 (Running at x1 via Chipset) |
| Storage | 1 × M.2 PCIe 5.0 x4/x2 (2280); 1 × M.2 PCIe 4.0 x4/x2 (2280); 4 × SATA 6Gb/s; RAID 0/1/5/10 |
| Connectivity | Realtek® 2.5GbE LAN (2.5Gbps/1Gbps/100Mbps) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |

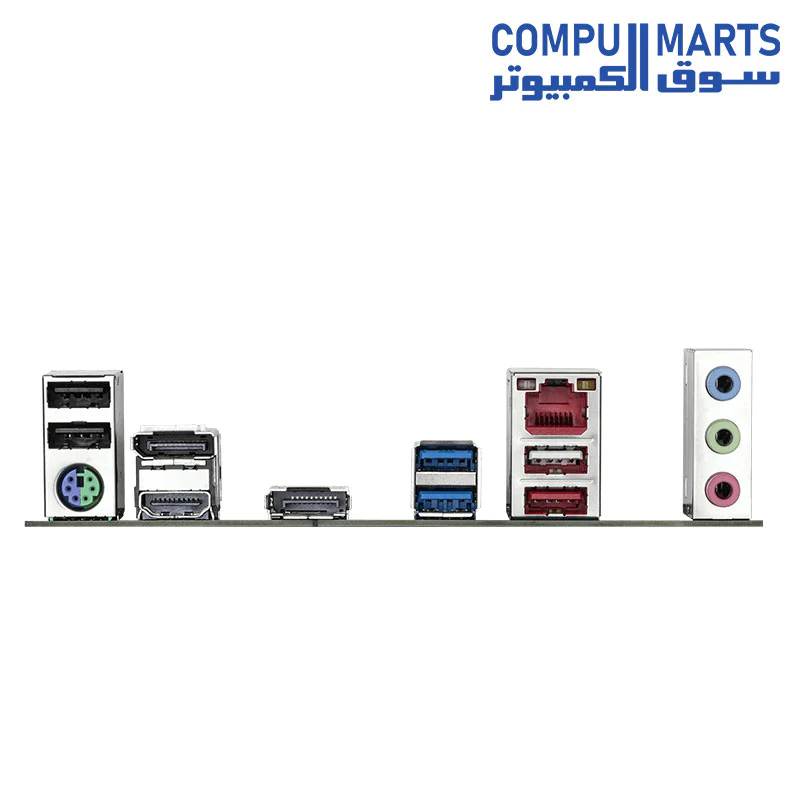

| Rear I/O | 1 × USB 3.2 Gen 2 (Type-A), 2 × USB 3.2 Gen 1, 3 × USB 2.0, 1 × HDMI, 2 × DP, 1 × RJ-45, 3 × Audio Jacks, 1 × PS/2 |
| Internal I/O | 1 × USB-C (Gen 1 Header), 1 × USB 3.2 Gen 1 Header, 2 × USB 2.0 Headers, 3 × ARGB Gen2, 1 × RGB |
| Hardware Features | Q-Flash Plus Button, Smart Fan Control, Voltage/Temp/Water Cooling Flow Detection |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| OS Support | Windows 11 64-bit (NPU Driver supported), Windows 10 64-bit |
$41.23
Original: $137.42
-70%GIGABYTE B860M DS3H DDR5 MOTHERBOARD—
$137.42
$41.23
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Supports Intel® Core™ Ultra Processors (Refer to GIGABYTE support list) |
| Chipset | Intel® B860 Express Chipset |
| Memory | 4 × DDR5 DIMM (Up to 256GB); Supports up to 9066(O.C) MT/s; Dual Channel; Intel® XMP |
| Graphics | 1 × HDMI 2.1 (4K@60Hz); 2 × DisplayPort 2.1 (4K@144Hz); Triple Display Support |
| Expansion Slots | 1 × PCIe 5.0 x16 (CPU); 2 × PCIe 4.0 x16 (Running at x1 via Chipset) |
| Storage | 1 × M.2 PCIe 5.0 x4/x2 (2280); 1 × M.2 PCIe 4.0 x4/x2 (2280); 4 × SATA 6Gb/s; RAID 0/1/5/10 |
| Connectivity | Realtek® 2.5GbE LAN (2.5Gbps/1Gbps/100Mbps) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| Rear I/O | 1 × USB 3.2 Gen 2 (Type-A), 2 × USB 3.2 Gen 1, 3 × USB 2.0, 1 × HDMI, 2 × DP, 1 × RJ-45, 3 × Audio Jacks, 1 × PS/2 |
| Internal I/O | 1 × USB-C (Gen 1 Header), 1 × USB 3.2 Gen 1 Header, 2 × USB 2.0 Headers, 3 × ARGB Gen2, 1 × RGB |
| Hardware Features | Q-Flash Plus Button, Smart Fan Control, Voltage/Temp/Water Cooling Flow Detection |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| OS Support | Windows 11 64-bit (NPU Driver supported), Windows 10 64-bit |
