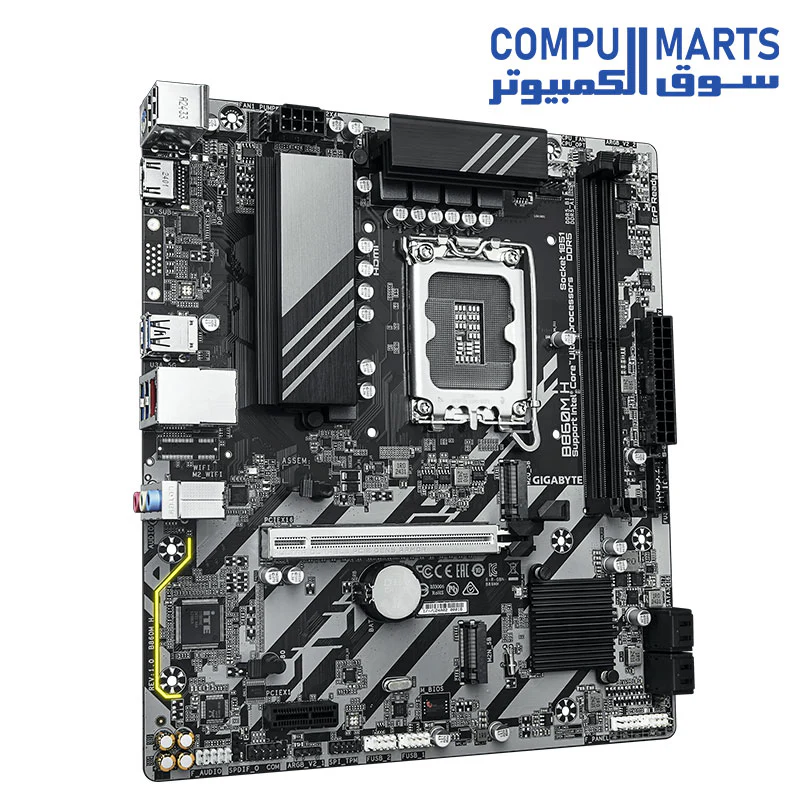

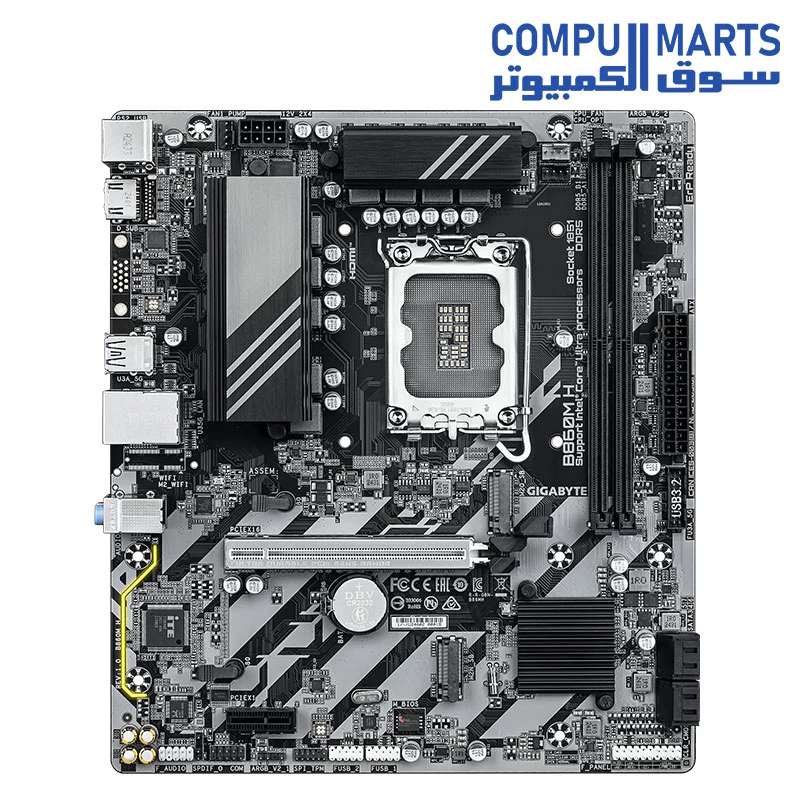

GIGABYTE B860M H Gaming Motherboard – Intel LGA1851 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – HDMI / DisplayPort – USB 3.2 – For Intel Core Ultra Processors

GIGABYTE B860M H Gaming Motherboard – Intel LGA1851 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – HDMI / DisplayPort – USB 3.2 – For Intel Core Ultra Processors

Category Specification Details
CPU Support LGA1851 socket: Support for Intel® Core™ Ultra Processors
Chipset Intel® B860 Express Chipset
Memory 2 x DDR5 DIMM (Up to 128GB); Supports up to DDR5 8800(O.C.); Dual Channel; XMP Support
Graphics 1 x HDMI 2.1 port (4096 x 2160 @ 60 Hz); HDCP 2.3 support
Audio Realtek® Audio CODEC; 7.1-channel High Definition Audio; S/PDIF Out support
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x1 (Chipset)
Storage 2 x M.2 (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0/1/5/10 support
USB (Back Panel) 4 x USB 3.2 Gen 1; 2 x USB 2.0/1.1
USB (Internal) 2 x USB 3.2 Gen 1; 4 x USB 2.0/1.1 via headers
I/O Headers 2 x Addressable RGB Gen2; 1 x CPU Fan; 1 x Water Pump; 1 x Serial Port; 1 x TPM
Back Panel Ports PS/2 Keyboard/Mouse; HDMI; RJ-45; 3 x Audio Jacks
Form Factor Micro ATX (24.4cm x 21.5cm)
OS Support Windows 11 64-bit (Required for Intel® NPU); Windows 10 64-bit
$31.49

Original: $104.97

-70%
GIGABYTE B860M H Gaming Motherboard – Intel LGA1851 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – HDMI / DisplayPort – USB 3.2 – For Intel Core Ultra Processors—

$104.97

$31.49
Product image 1
Product image 2
Product image 3
Product image 4

Description

Category Specification Details
CPU Support LGA1851 socket: Support for Intel® Core™ Ultra Processors
Chipset Intel® B860 Express Chipset
Memory 2 x DDR5 DIMM (Up to 128GB); Supports up to DDR5 8800(O.C.); Dual Channel; XMP Support
Graphics 1 x HDMI 2.1 port (4096 x 2160 @ 60 Hz); HDCP 2.3 support
Audio Realtek® Audio CODEC; 7.1-channel High Definition Audio; S/PDIF Out support
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x1 (Chipset)
Storage 2 x M.2 (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0/1/5/10 support
USB (Back Panel) 4 x USB 3.2 Gen 1; 2 x USB 2.0/1.1
USB (Internal) 2 x USB 3.2 Gen 1; 4 x USB 2.0/1.1 via headers
I/O Headers 2 x Addressable RGB Gen2; 1 x CPU Fan; 1 x Water Pump; 1 x Serial Port; 1 x TPM
Back Panel Ports PS/2 Keyboard/Mouse; HDMI; RJ-45; 3 x Audio Jacks
Form Factor Micro ATX (24.4cm x 21.5cm)
OS Support Windows 11 64-bit (Required for Intel® NPU); Windows 10 64-bit
