MAG B760M MORTAR WIFI DDR5 GAMING Motherboard (Supports 12th/13th Gen Intel- DDR5- 192GB- HDMI- 2X PCI-E X16 SLOT)

MAG B760M MORTAR WIFI DDR5 GAMING Motherboard (Supports 12th/13th Gen Intel- DDR5- 192GB- HDMI- 2X PCI-E X16 SLOT)

MAG B760M MORTAR WIFI DDR5 GAMING Motherboard

CHIPSET

INTEL B760
CPU SUPPORT

Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

LGA1700
MEMORY

4x DDR5, Maximum Memory Capacity 192GB

Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7000+ MHz

• 1DPC 2R Max speed up to 6600+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel Extreme Memory Profile
ONBOARD GRAPHICS

1x HDMI

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*
EXPANSION SLOT

2x PCI-E x16 slot

Supports x16/x4

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
STORAGE

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Front)

3x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)
LAN

Realtek 2.5Gbps LAN
AUDIO

Realtek ALC897 Codec

7.1-Channel USB High Performance Audio

Supports S/PDIF output
INTERNAL I/O

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

4x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x TBT connector (JTBT, supports RTD3)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

B 3.2 Gen1 Type A ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

  1. USB 2.0

  2. DisplayPort 1.4

  3. USB 3.2 Gen 2 10Gbps Type-A

  4. 2.5G LAN Port

  5. Wi-Fi / Bluetooth Antenna

  6. HD Audio Connectors

  7. HDMI 2.1 Port

  8. USB 3.2 Gen 2x2 20Gbps Type-C

  9. Optical S/PDIF OUT

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

PCB INFO

mATX

243.84mmx243.84mm
$54.10

Original: $180.34

-70%
MAG B760M MORTAR WIFI DDR5 GAMING Motherboard (Supports 12th/13th Gen Intel- DDR5- 192GB- HDMI- 2X PCI-E X16 SLOT)—

$180.34

$54.10

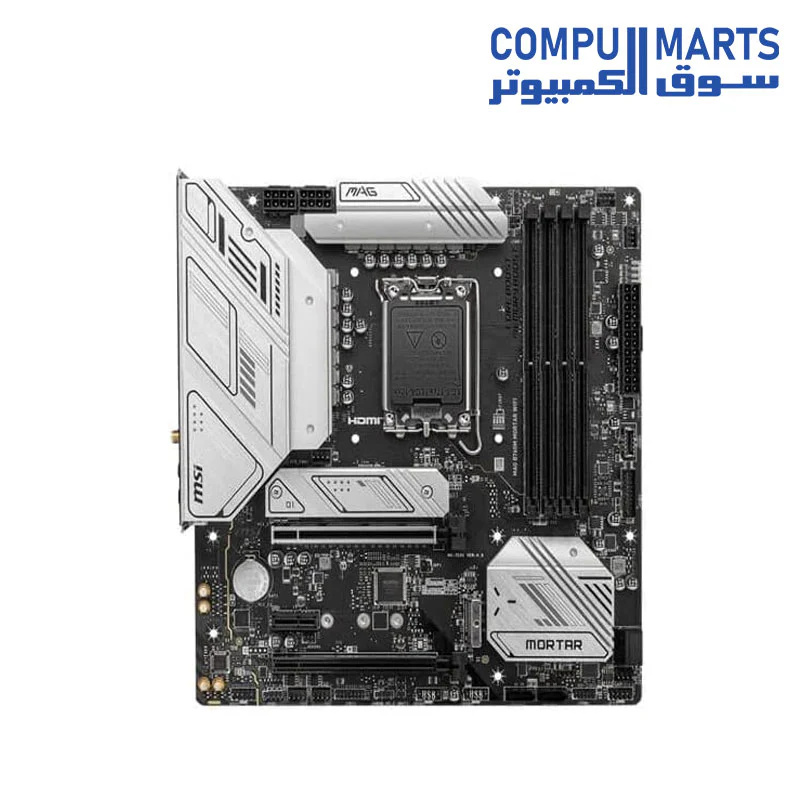

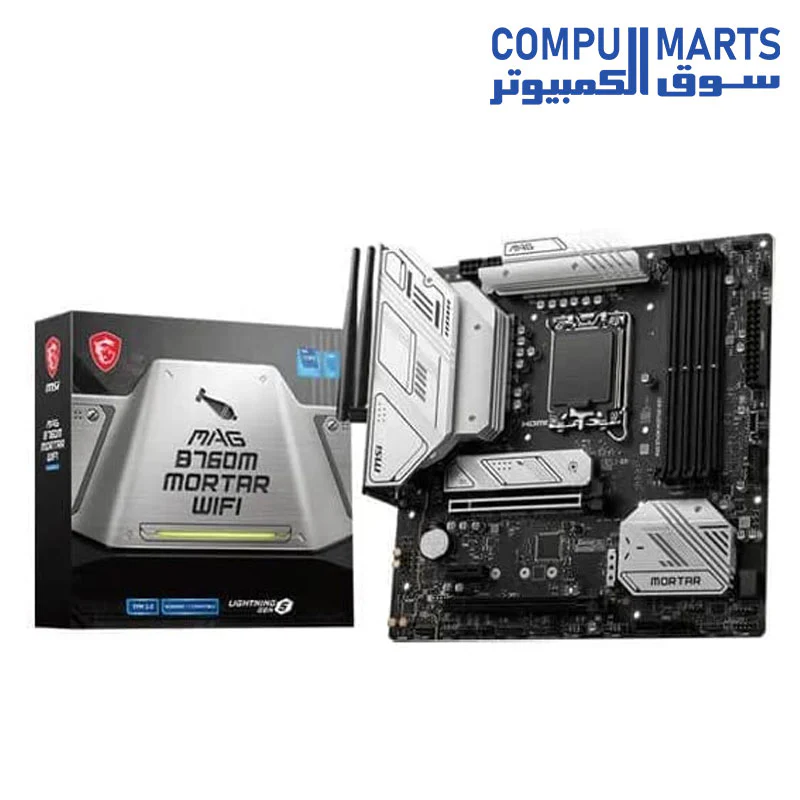

Product image 1
Product image 2
Product image 3
Product image 4

Description

MAG B760M MORTAR WIFI DDR5 GAMING Motherboard

CHIPSET

INTEL B760
CPU SUPPORT

Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

LGA1700
MEMORY

4x DDR5, Maximum Memory Capacity 192GB

Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7000+ MHz

• 1DPC 2R Max speed up to 6600+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel Extreme Memory Profile
ONBOARD GRAPHICS

1x HDMI

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*
EXPANSION SLOT

2x PCI-E x16 slot

Supports x16/x4

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
STORAGE

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Front)

3x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)
LAN

Realtek 2.5Gbps LAN
AUDIO

Realtek ALC897 Codec

7.1-Channel USB High Performance Audio

Supports S/PDIF output
INTERNAL I/O

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

4x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x TBT connector (JTBT, supports RTD3)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

B 3.2 Gen1 Type A ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

  1. USB 2.0

  2. DisplayPort 1.4

  3. USB 3.2 Gen 2 10Gbps Type-A

  4. 2.5G LAN Port

  5. Wi-Fi / Bluetooth Antenna

  6. HD Audio Connectors

  7. HDMI 2.1 Port

  8. USB 3.2 Gen 2x2 20Gbps Type-C

  9. Optical S/PDIF OUT

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

PCB INFO

mATX

243.84mmx243.84mm
