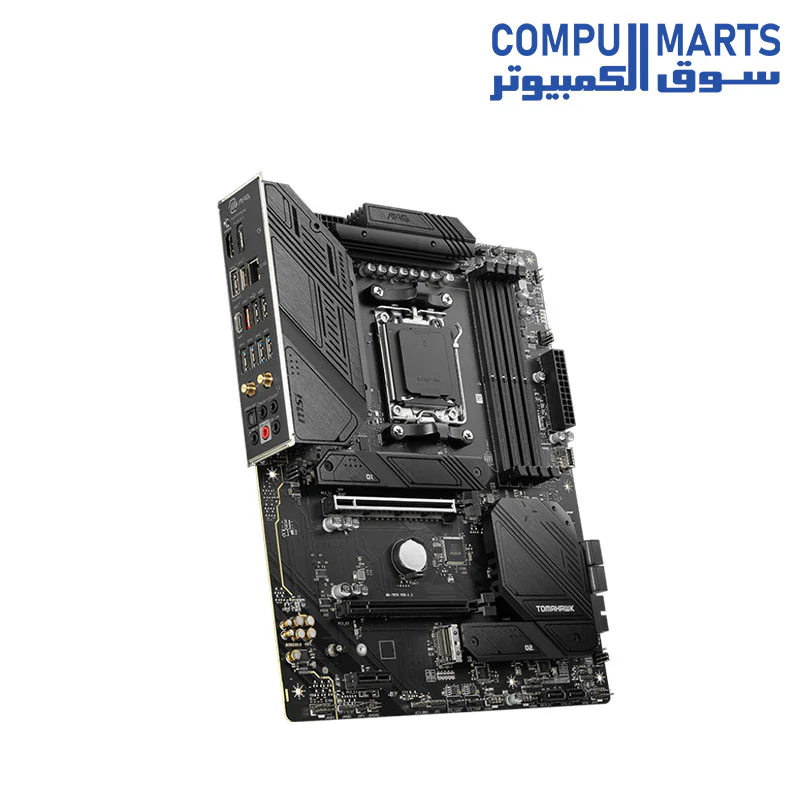

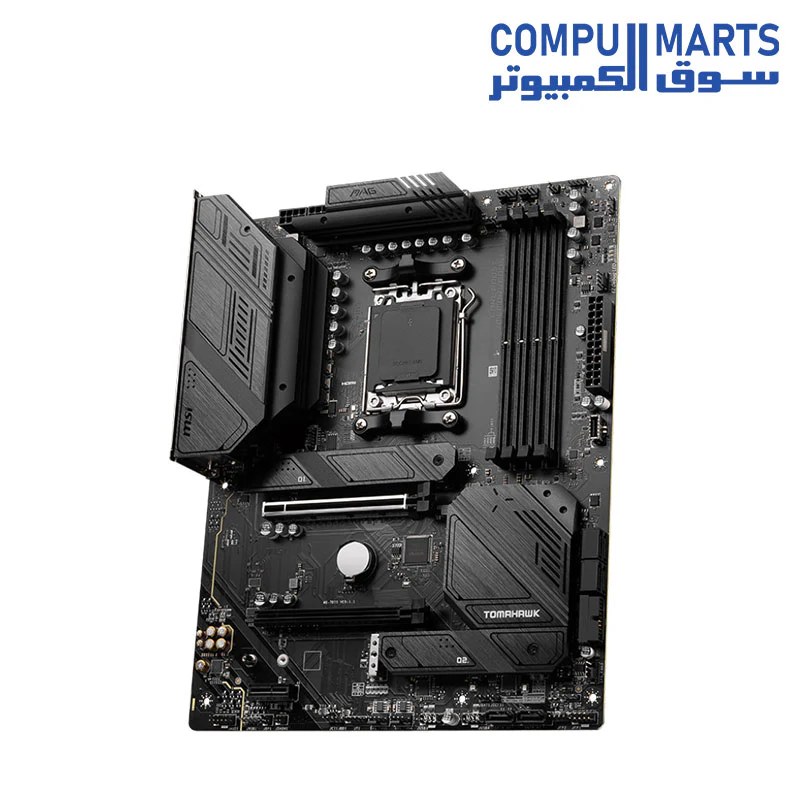

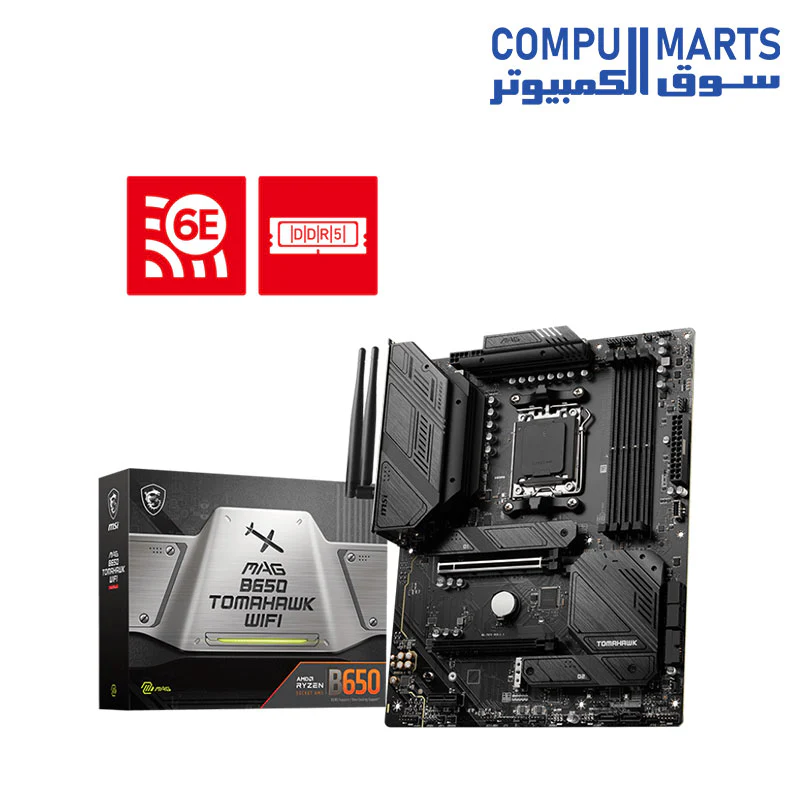

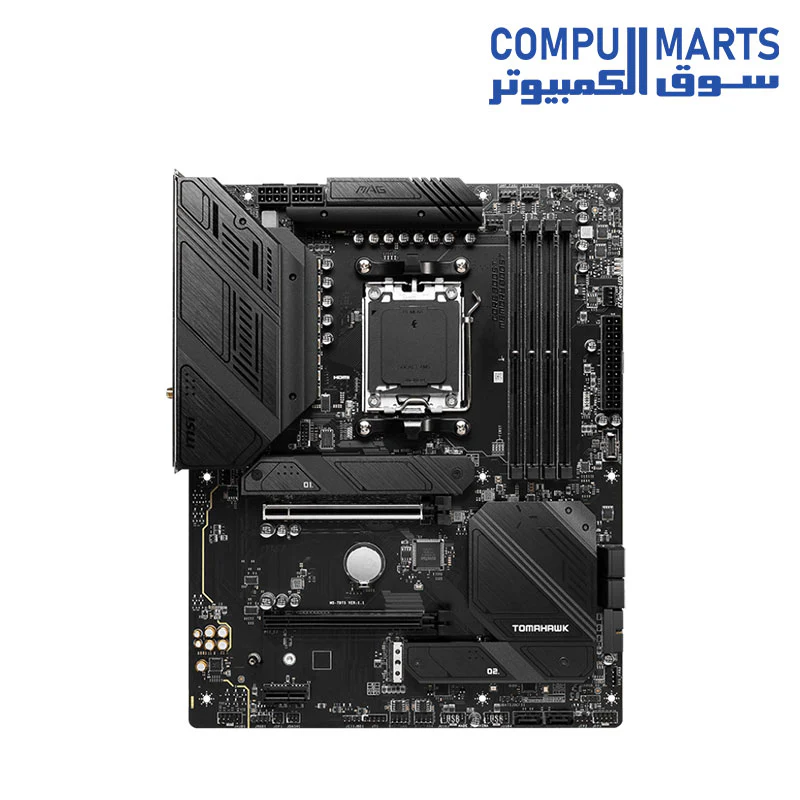

MSI MAG B650 Tomahawk WiFi Gaming Motherboard

AMD B650

Supports AMD Ryzen 7000 Series Desktop Processors

Socket AM5

4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7600+ MHz

• 1DPC 2R Max speed up to 6400+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 5400+ MHz

1x HDMI

Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz

1x DisplayPort

Support DP 1.4, maximum resolution of 8K 60Hz

2x PCI-E x16 slot

Support x16/ x4

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)

PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

3x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

6x SATA 6G

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

 SATA_A1_A2 do not support RAID function.

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

3x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

Realtek RTL8125B 2.5Gbps LAN

AMD Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3

 Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Realtek ALC4080 Codec

7.1-Channel High Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

4x EZ Debug LED

1. DisplayPort 1.4

2. 2.5G LAN Port

3. USB 2.0 Port

4. USB 3.2 Gen 1 5Gbps Type-A

5. Wi-Fi / Bluetooth Antenna

6. HD Audio Connectors

7. Flash BIOS Button

8. HDMI 2.1 Port

9. USB 3.2 Gen 2 10Gbps Type-A

10. USB 3.2 Gen 2x2 20Gbps Type-C

11. Optical S/PDIF OUT

Support for Windows 11 64-bit, Windows 10 64-bit

ATX

243.84mmx304.8mm
