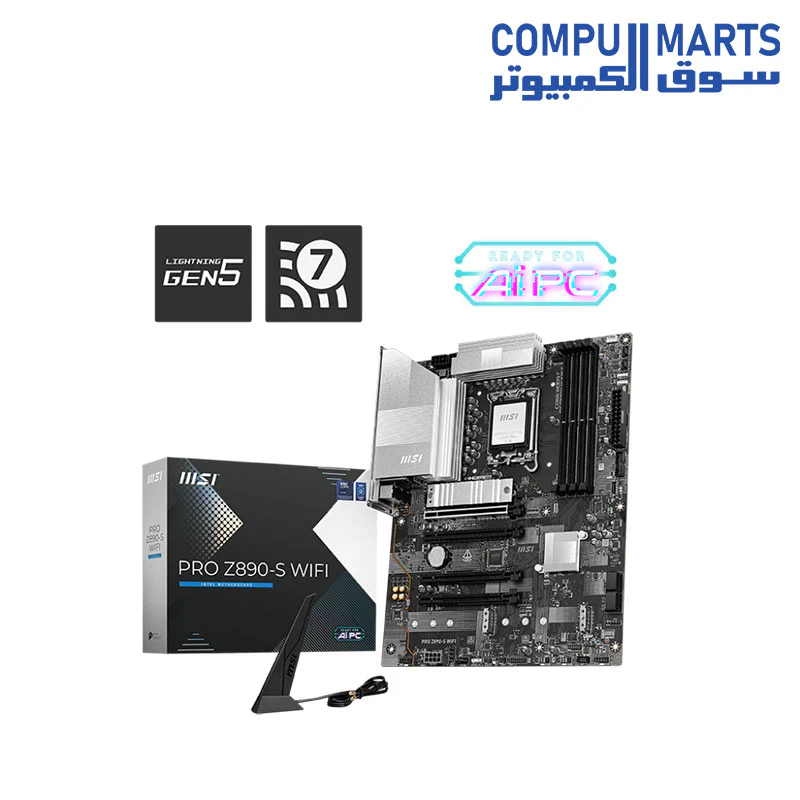

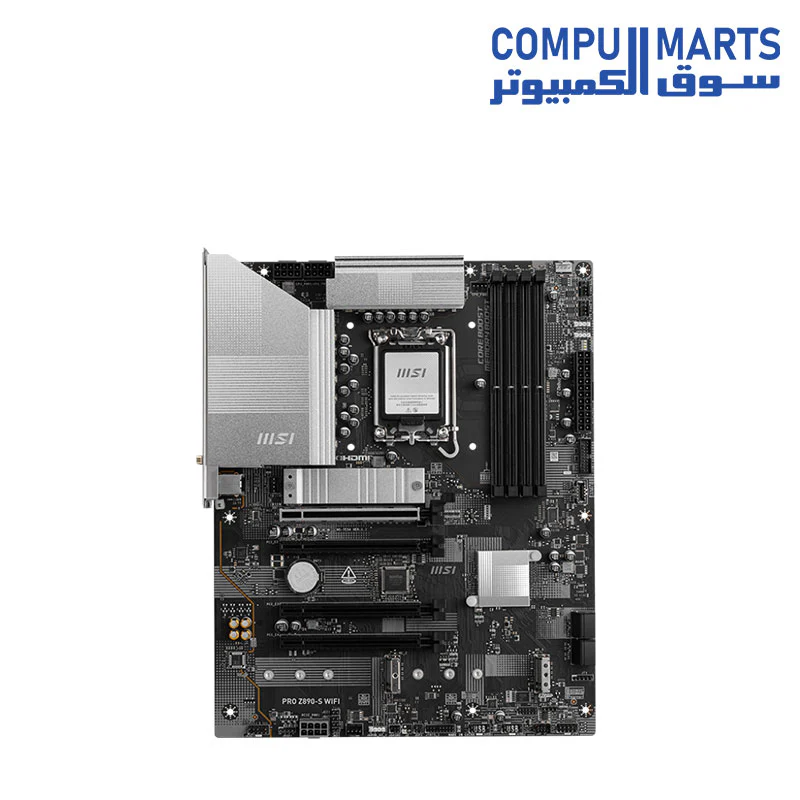

MSI PRO Z890-S WiFi ProSeries Motherboard
| Category | Specification Details |
|---|---|
| Chipset | INTEL Z890 |
| CPU Support | Supports IntelĀ® Coreā¢ Ultra Processors (Series 2) LGA 1851 |
| Memory Capacity | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Speed Support | 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s |
| Max Overclocking Frequency | 1DPC 1R Max speed up to 8800+ MT/s, 1DPC 2R Max speed up to 7200+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 5600+ MT/s |
| Memory Features | Supports IntelĀ® POR Speed and JEDEC Speed, Supports Memory Overclocking and IntelĀ® XMP 3.0, Supports Dual-Controller Dual-Channel mode, Supports Non-ECC, Un-buffered memory, Supports CUDIMM |
| Onboard Graphics | 1x HDMIā¢ 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz), 1x Type-C DisplayPort (Thunderboltā¢ 4 supporting DP 2.1 4K@120Hz / 8K@60Hz) |
| Expansion Slots | 4x PCI-E x16 slot: PCI_E1 Gen PCIe 5.0 x16 (CPU), PCI_E2 Gen PCIe 3.0 x1 (Chipset), PCI_E3 Gen PCIe 4.0 x4 (Chipset), PCI_E4 Gen PCIe 4.0 x4 (CPU) |
| Audio | RealtekĀ® ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 3x M.2 slots (M.2_1 PCIe 5.0 x4 CPU, M.2_2 PCIe 4.0 x4 Chipset, M.2_3 PCIe 4.0 x4/SATA Chipset), 4x SATA 6G |
| RAID Support | RAID 0, 1, 5, 10 for SATA; RAID 0, 1, 5 for M.2 NVMe |
| Thunderbolt | 1x Thunderbolt 4 port (Rear) up to 40Gbps, supports 15W charging, daisy-chain, and 8K display |
| USB Ports | 1x USB 20Gbps Type C (Rear), 1x USB 20Gbps Type C (Front), 6x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 4x USB 2.0 (Front) |
| LAN | RealtekĀ® 8125D 2.5Gbps LAN |
| Wireless & Bluetooth | IntelĀ® Wi-Fi 7 (up to 5.8Gbps), Supports BluetoothĀ® 5.4, MLO, 4KQAM |
| Internal IO | 1x Thunderbolt 5 card connector, 1x 8-pin PCIE_PWR, 1x CPU Fan, 1x Combo Fan, 4x System Fan, 1x EZ Conn-header, 3x Addressable V2 RGB, 1x RGB, 1x TPM 2.0 header |
| LED Feature | 4x EZ Debug LED |
| Back Panel Ports | DisplayPort, HDMIā¢, Thunderboltā¢ 4 40Gbps (Type-C), USB 20Gbps Type-C, USB 5Gbps Type-A, 2.5G LAN, Wi-Fi / Bluetooth, Audio Connectors |
| Operating System | Support for WindowsĀ® 11 64-bit |
| PCB Info | ATX (243.84mm x 304.8mm) |
$250.03
MSI PRO Z890-S WiFi ProSeries Motherboardā
$250.03
Description
| Category | Specification Details |
|---|---|
| Chipset | INTEL Z890 |
| CPU Support | Supports IntelĀ® Coreā¢ Ultra Processors (Series 2) LGA 1851 |
| Memory Capacity | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Speed Support | 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s |
| Max Overclocking Frequency | 1DPC 1R Max speed up to 8800+ MT/s, 1DPC 2R Max speed up to 7200+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 5600+ MT/s |
| Memory Features | Supports IntelĀ® POR Speed and JEDEC Speed, Supports Memory Overclocking and IntelĀ® XMP 3.0, Supports Dual-Controller Dual-Channel mode, Supports Non-ECC, Un-buffered memory, Supports CUDIMM |
| Onboard Graphics | 1x HDMIā¢ 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz), 1x Type-C DisplayPort (Thunderboltā¢ 4 supporting DP 2.1 4K@120Hz / 8K@60Hz) |
| Expansion Slots | 4x PCI-E x16 slot: PCI_E1 Gen PCIe 5.0 x16 (CPU), PCI_E2 Gen PCIe 3.0 x1 (Chipset), PCI_E3 Gen PCIe 4.0 x4 (Chipset), PCI_E4 Gen PCIe 4.0 x4 (CPU) |
| Audio | RealtekĀ® ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 3x M.2 slots (M.2_1 PCIe 5.0 x4 CPU, M.2_2 PCIe 4.0 x4 Chipset, M.2_3 PCIe 4.0 x4/SATA Chipset), 4x SATA 6G |
| RAID Support | RAID 0, 1, 5, 10 for SATA; RAID 0, 1, 5 for M.2 NVMe |
| Thunderbolt | 1x Thunderbolt 4 port (Rear) up to 40Gbps, supports 15W charging, daisy-chain, and 8K display |
| USB Ports | 1x USB 20Gbps Type C (Rear), 1x USB 20Gbps Type C (Front), 6x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 4x USB 2.0 (Front) |
| LAN | RealtekĀ® 8125D 2.5Gbps LAN |
| Wireless & Bluetooth | IntelĀ® Wi-Fi 7 (up to 5.8Gbps), Supports BluetoothĀ® 5.4, MLO, 4KQAM |
| Internal IO | 1x Thunderbolt 5 card connector, 1x 8-pin PCIE_PWR, 1x CPU Fan, 1x Combo Fan, 4x System Fan, 1x EZ Conn-header, 3x Addressable V2 RGB, 1x RGB, 1x TPM 2.0 header |
| LED Feature | 4x EZ Debug LED |
| Back Panel Ports | DisplayPort, HDMIā¢, Thunderboltā¢ 4 40Gbps (Type-C), USB 20Gbps Type-C, USB 5Gbps Type-A, 2.5G LAN, Wi-Fi / Bluetooth, Audio Connectors |
| Operating System | Support for WindowsĀ® 11 64-bit |
| PCB Info | ATX (243.84mm x 304.8mm) |
