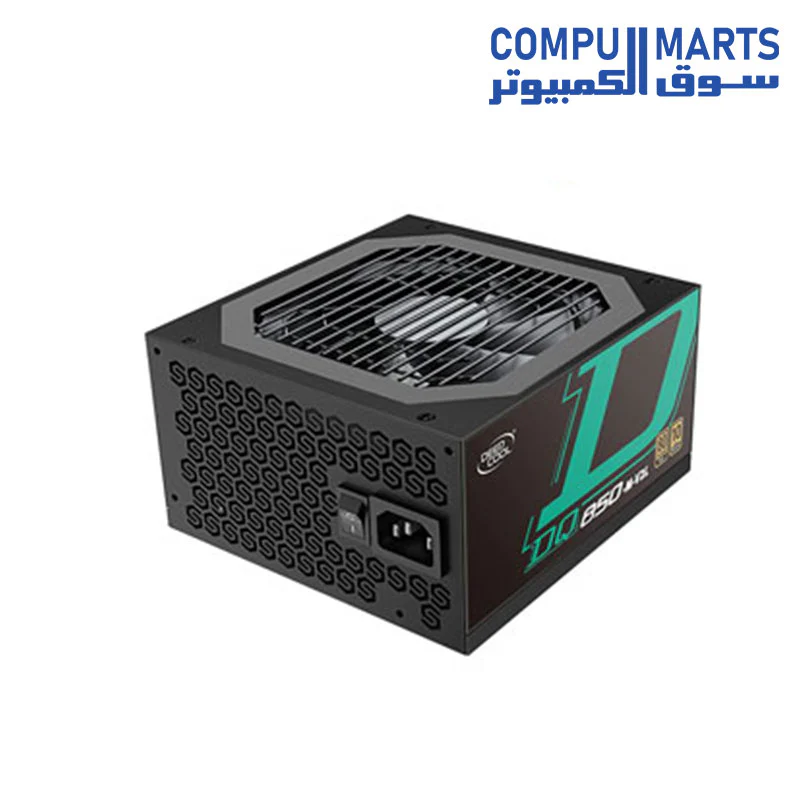

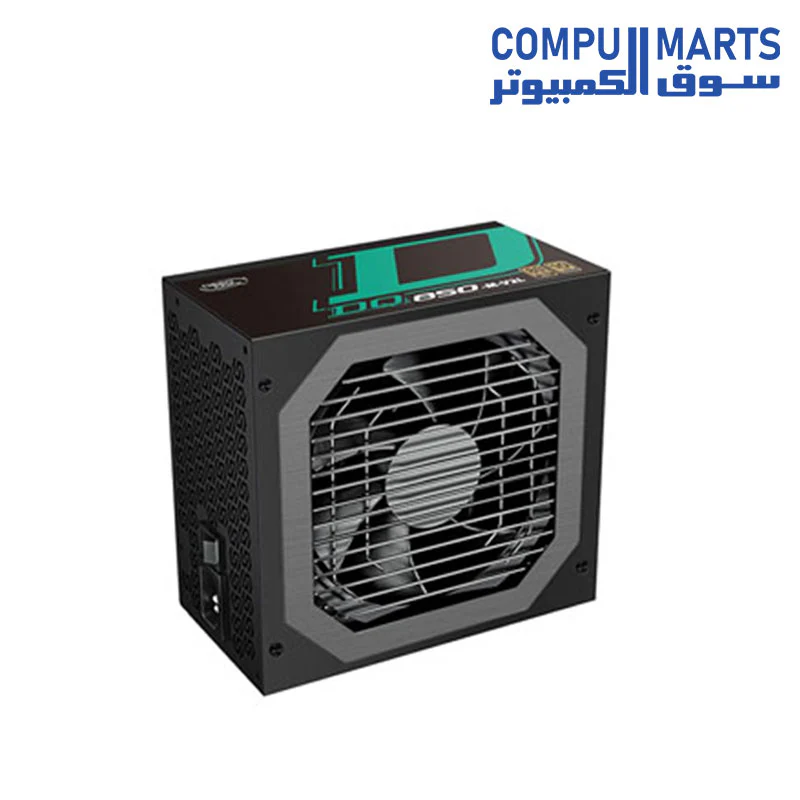

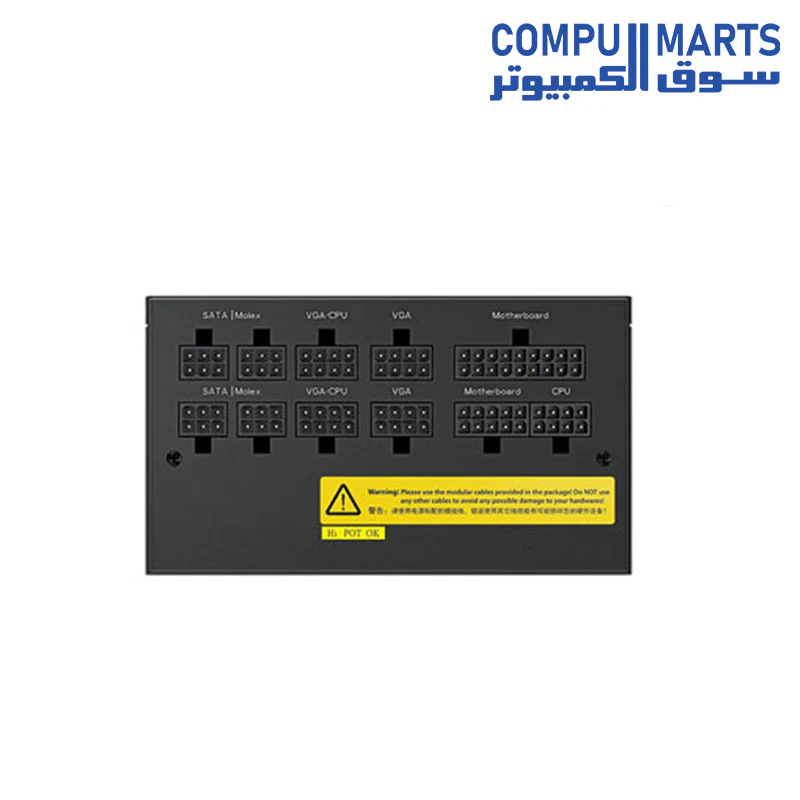

Power Supply DeepCool DQ850-M V2L 80+Gold
Power Supply DeepCool DQ850-M V2L 80+Gold
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ850-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.
High grade Japanese 105℃ PFC Boost Capacitor
100% Japanese Capacitors
Excellent 1 and 2-stage EMI filter circuit
Highly efficient Active PFC
Excellent manufacturing process
Highly reliable supervisor IC for protections
Model |
DQ850-M-V2L |
Type |
ATX 12V V2.31 |
Certifications |
80PLUS GOLD |
Dimension |
150×160×86mm (W × L × H) |
Output Capacity |
850W |
Input Voltage |
100-240V |
Input Current |
12.0A |
Input Frequency Range |
47-63Hz |
Fan Size |
120mm |
PFC |
Active |
Power Good Signal |
100-500ms |
Hold Up Time |
>16ms(80% Loading) |
Efficiency |
>90% Under Typical Load(50% Loading) |
Standby Efficiency |
ErP Lot 3 2014 |
Protection |
OVP/UVP/OCP/SCP/OPP/OTP |
Operation Temperature |
0-40°C |
Regulatory |
CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs |
MTBF |
100,000 Hours |
EAN |
6933412798934 |
P/N |
DP-GD-DQ850-M-V2L |
$15.75
Original: $52.49
-70%Power Supply DeepCool DQ850-M V2L 80+Gold—
$52.49
$15.75
Description
Power Supply DeepCool DQ850-M V2L 80+Gold
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ850-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.
High grade Japanese 105℃ PFC Boost Capacitor
100% Japanese Capacitors
Excellent 1 and 2-stage EMI filter circuit
Highly efficient Active PFC
Excellent manufacturing process
Highly reliable supervisor IC for protections
Model |
DQ850-M-V2L |
Type |
ATX 12V V2.31 |
Certifications |
80PLUS GOLD |
Dimension |
150×160×86mm (W × L × H) |
Output Capacity |
850W |
Input Voltage |
100-240V |
Input Current |
12.0A |
Input Frequency Range |
47-63Hz |
Fan Size |
120mm |
PFC |
Active |
Power Good Signal |
100-500ms |
Hold Up Time |
>16ms(80% Loading) |
Efficiency |
>90% Under Typical Load(50% Loading) |
Standby Efficiency |
ErP Lot 3 2014 |
Protection |
OVP/UVP/OCP/SCP/OPP/OTP |
Operation Temperature |
0-40°C |
Regulatory |
CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs |
MTBF |
100,000 Hours |
EAN |
6933412798934 |
P/N |
DP-GD-DQ850-M-V2L |
