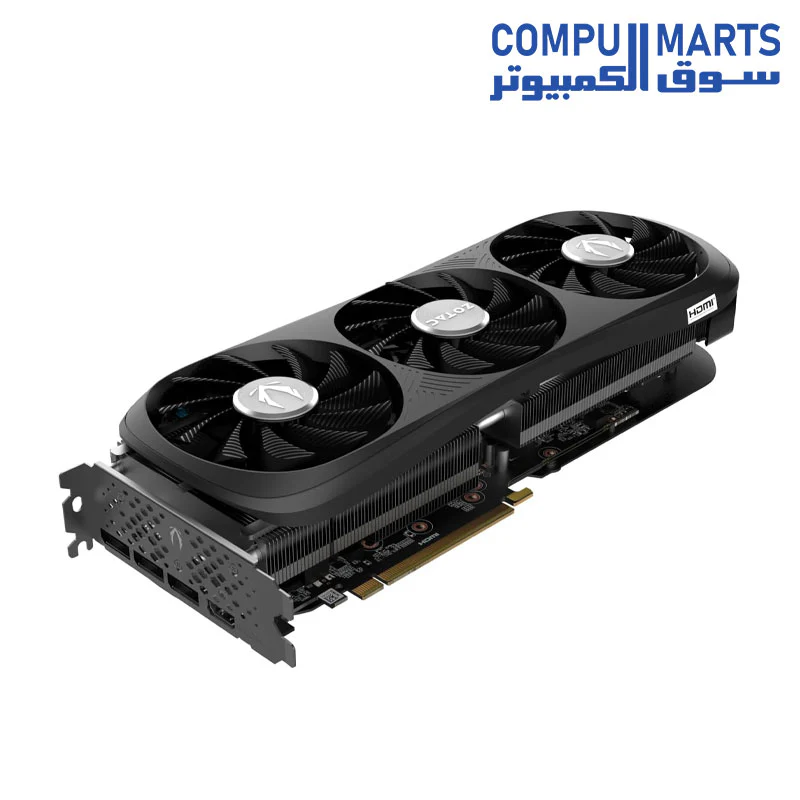

ZOTAC GAMING GeForce RTX 4070 SUPER Trinity Black Edition 12GB GDDR6X

ZOTAC GAMING GeForce RTX 4070 SUPER Trinity Black Edition 12GB GDDR6X

• Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing

• Boost Clock 2475 MHz, 12GB GDDR6X, 192-bit, 21 Gbps, PCIE 4.0

• IceStorm 2.0 Advanced Cooling, SPECTRA RGB Lighting, 3x 90mm fans, FREEZE Fan Stop, Active Fan Control, Metal Backplate, Bundled GPU Support Stand

• 8K Ready, 4 Display Ready, HDCP 2.3, VR Ready

• 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, DirectX 12 Ultimate, Vulkan RT API, Vulkan 1.3, OpenGL 4.6

Brand	ZOTAC
Series	Trinity
Model	ZT-D40720D-10P

Interface

Interface	PCI Express 4.0 x16

Chipset

Chipset Manufacturer	NVIDIA
GPU Series	NVIDIA GeForce RTX 40 Series
GPU	GeForce RTX 4070 SUPER
Boost Clock	2475 MHz

Memory

Effective Memory Clock	21000 MHz (21 Gbps)
Memory Size	12GB
Memory Interface	192-Bit
Memory Type	GDDR6X

3D API

DirectX	DirectX 12 Ultimate
OpenGL	OpenGL 4.6

Ports

Multi-Monitor Support	4
HDMI	1 x HDMI 2.1a
DisplayPort	3 x DisplayPort 1.4a

Details

Max Resolution	7680 x 4320
Cooler	Triple Fans
Thermal Design Power	220W
Recommended PSU Wattage	750W
Power Connector	1 x 12-Pin
HDCP Ready	Yes

Form Factor & Dimensions

Form Factor	ATX
Max GPU Length	307 mm
Slot Width	2.5 Slots
