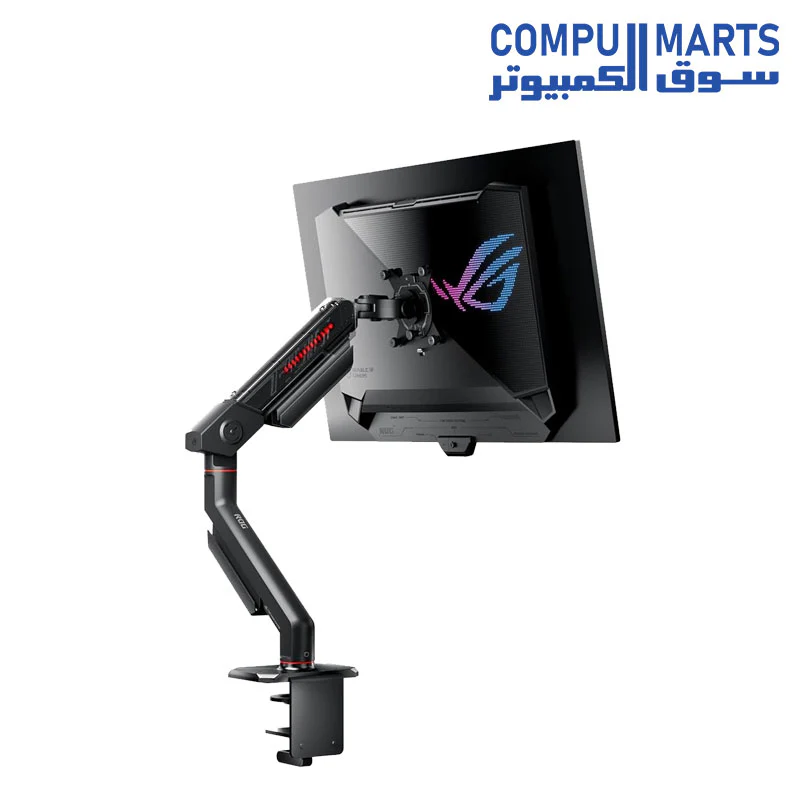

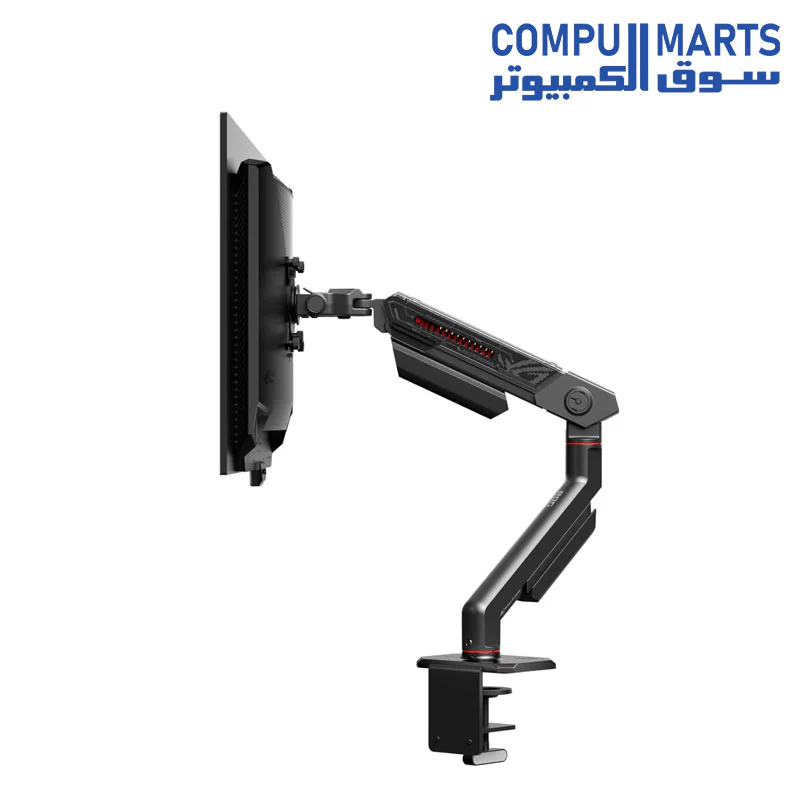

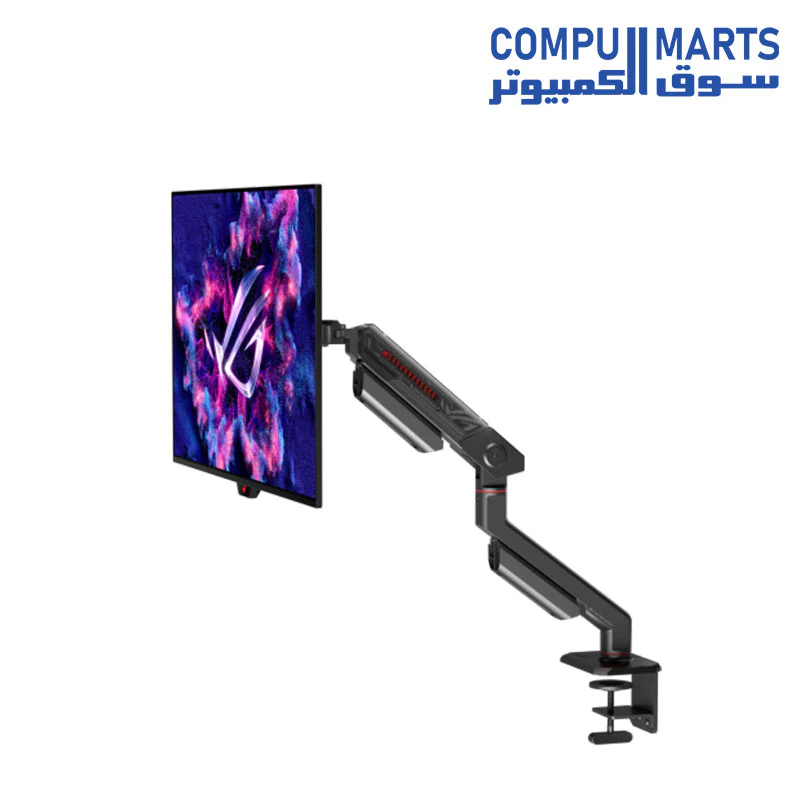

ASUS ROG Ergo Monitor Arm AAS01

ASUS ROG Ergo Monitor Arm AAS01

Recommended Display Size:

• ≤34 inches

Adjustability:

• Swivel: +90° to -90°

• Pivot: 360°

• Lift: 32 cm

• Pan: 360°

• Tilt: +80° to -25°

• Rotation: 360°

• Maximum Extension: 63.72 cm

Mounting & Installation:

• VESA Wall Mounting: 100×100 mm

• Cable Management: Integrated

• Desk Clamp Range: 10–80 mm

Chassis Color:

• Black

Dimensions:

• Physical Dimensions: 57.8 × 65.6 × 15.4 cm (22.76" × 25.83" × 6.06")

• Box Dimensions: 77.5 × 13.5 × 23.2 cm (30.51" × 5.31" × 9.13")

Weight:

• Weight Capacity:

  • Flat Display: 3–11.5 kg

  • Curved Display: 3–8.5 kg

• Net Weight: 4.5 kg (9.92 lbs)

• Gross Weight: 5.8 kg (12.79 lbs)

Notes:

1. Display size is an approximation.

2. Dimension refers to the diagonal measurement of the display.

3. The display size may be exceeded as long as the weight does not exceed the mount's maximum capacity.
