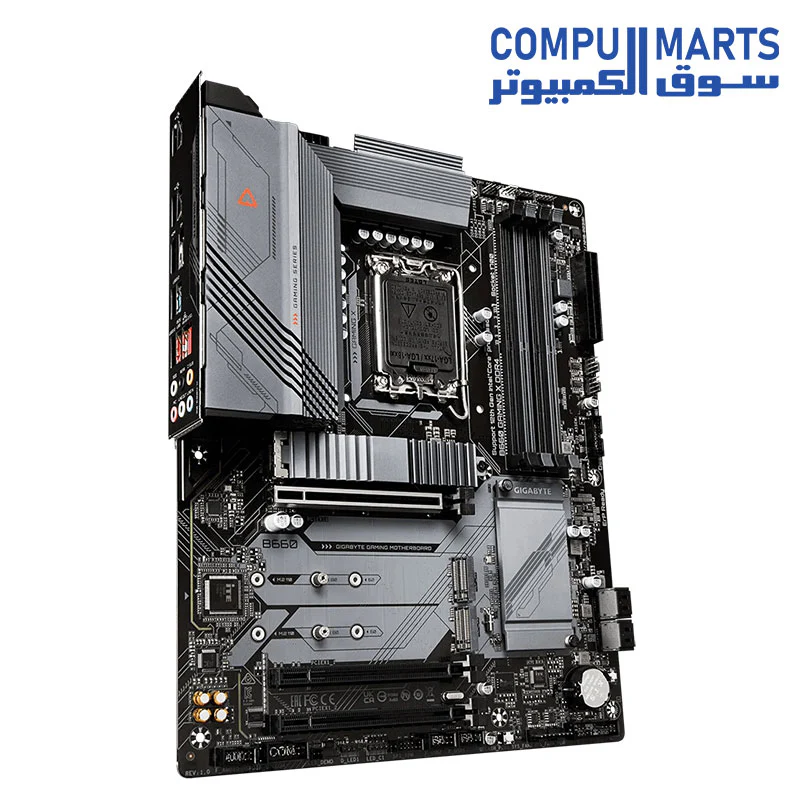

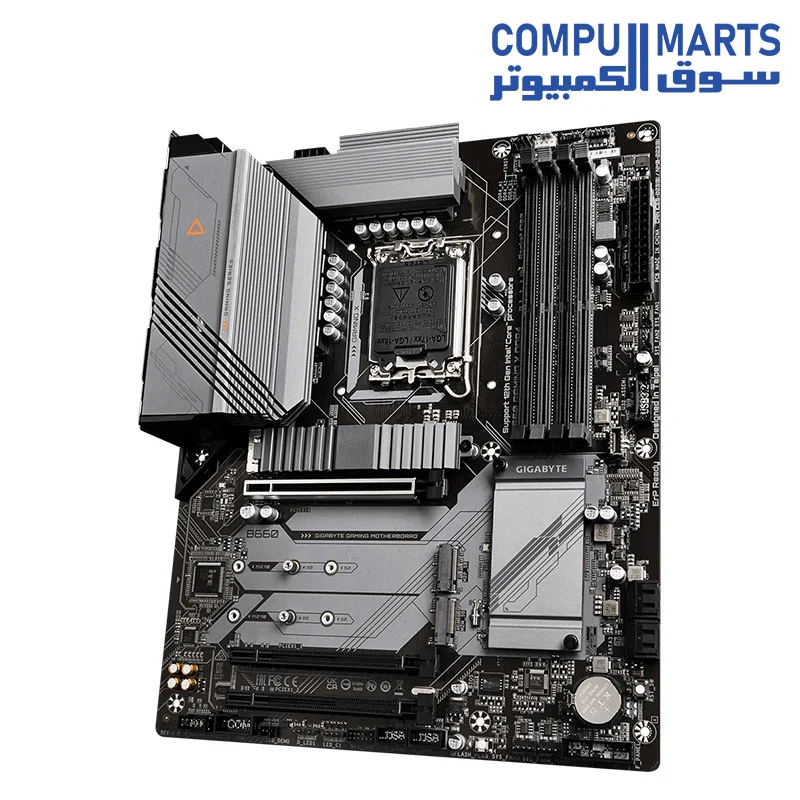

GIGABYTE B660 GAMING X DDR4

ULTRA DURABLEGIGABYTE Ultra Durable features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

• CPU

  1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  2. L3 cache varies with CPU

  * Please refer to "CPU Support List" for more information.

• Chipset

  1. IntelB660 Express Chipset

• Memory

  1. Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MT/s memory modules

  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

  3. Dual channel memory architecture

  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  6. Support for Extreme Memory Profile (XMP) memory modules

• Onboard GraphicsIntegrated Graphics Processor-Intel HD Graphics support:

  1. 1 x DisplayPort, supporting a maximum resolution of 4096x230460 Hz Support for DisplayPort 1.2 version and HDCP 2.3

  2. 1 x HDMI port, supporting a maximum resolution of 4096x216060 Hz Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports.

  (Graphics specifications may vary depending on CPU support.)

• Audio

  1. Realtek Audio CODEC

  2. High Definition Audio

  3. 2/4/5.1/7.1-channel

  4. Support for S/PDIF Out

• LAN

  1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Expansion Slots

  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 4.0 standard.)

  2. 2 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_2)(All of the PCI Express slots conform to PCI Express 3.0 standard.)

• Storage InterfaceCPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

  2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)

  3. 4 x SATA 6Gb/s connectors

  Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

  Intel Optane Memory Ready

  * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.

• USB

  Chipset:

  1. 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

  3. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

  4. 1 x USB 2.0/1.1 port on the back panel

  Chipset+2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

  2. 1 x 8-pin ATX 12V power connector

  3. 1 x CPU fan header

  4. 1 x water cooling CPU fan header

  5. 3 x system fan headers

  6. 1 x system fan/water cooling pump header

  7. 2 x addressable LED strip headers

  8. 2 x RGB LED strip headers

  9. 3 x M.2 Socket 3 connectors

  10. 4 x SATA 6Gb/s connectors

  11. 1 x front panel header

  12. 1 x front panel audio header

  13. 1 x USB Type-C header, with USB 3.2 Gen 2 support

  14. 1 x USB 3.2 Gen 1 header

  15. 2 x USB 2.0/1.1 headers

  16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  17. 1 x serial port header

  18. 1 x Q-Flash Plus button

  19. 1 x reset button

  20. 1 x reset jumper

  21. 1 x Clear CMOS jumper

  ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

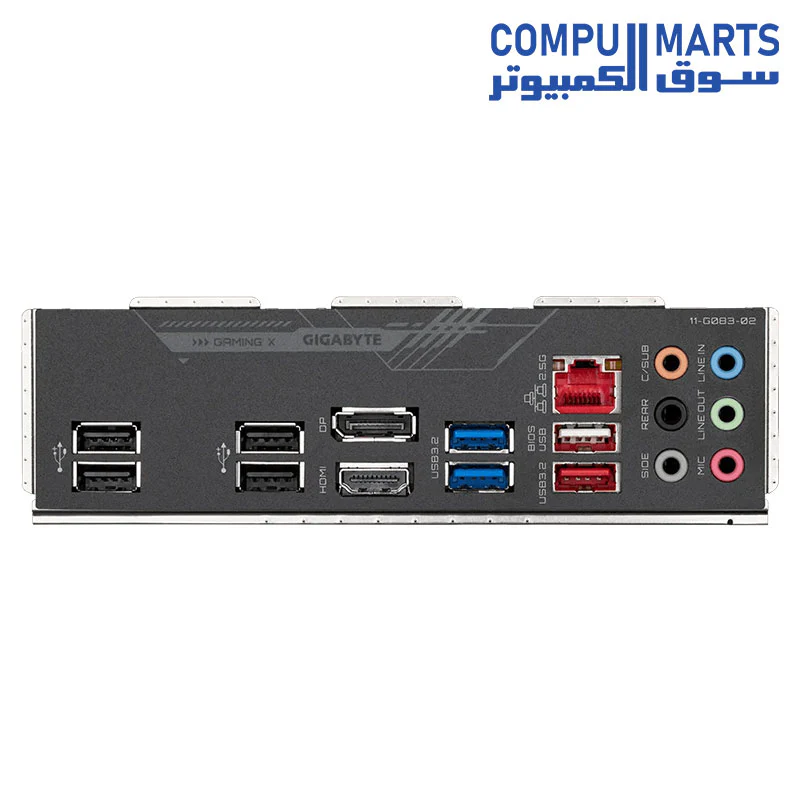

• Back Panel Connectors

  1. 1 x USB 3.2 Gen 2 Type-A port (red)

  2. 2 x USB 3.2 Gen 1 ports

  3. 5 x USB 2.0/1.1 ports

  4. 1 x DisplayPort

  5. 1 x HDMI 2.0 port

  6. 1 x RJ-45 port

  7. 6 x audio jacks

• I/O Controller

  1. iTE I/O Controller Chip

• H/W Monitoring

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Water cooling flow rate detection

  5. Fan fail warning

  6. Fan speed control

     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS

  1. 1 x 256 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.BIOSEasyTuneRGB FusionSmart BackupSystem Information Viewer

  2. Support for Q-Flash Plus

  3. Support for Q-Flash

  4. Support for Xpress Install

• Bundled Software

  1. Norton Internet Security (OEM version)

  2. LAN bandwidth management software

• Operating System

  1. Support for Windows 11 64-bit

  2. Support for Windows 10 64-bit

• Form Factor

  1. ATX Form Factor; 30.5cm x 24.4cm
